Pits Atlas: King 13b
Impact Melt pit: King | |
---|---|
Name | King 13b |
Lat. | 6.2551 |
Long. | 119.7615 |
Desc. | Northern pit of the King 13 pair, on the NW side of the PRF. Does not have an unambiguously-visible floor in any image, even the noontime M172133732L, although there may be a ledge on the W wall ~5m down, leaving a ~6x2m inner pit. There is a similar-diameter depression 14m W at the base of the PRF, although its only vertical wall is the PRF-ward one. |
Types | |
Terrain | Impact Melt |
Host Feature | King |
Funnel Min. Diam. | 8 |
Funnel Max. Diam. | 10 |
Inner Min. Diam. | 5 |
Inner Max. Diam. | 7 |
Azimuth | 165 |
Depth | 7.0 |
Depth 1 | >5.0 |
Depth 2 | 6.8 |
Depth 3 | 7.4 |
Best Stereo Left | M143839277L |
Best Stereo Right | M143839277L |

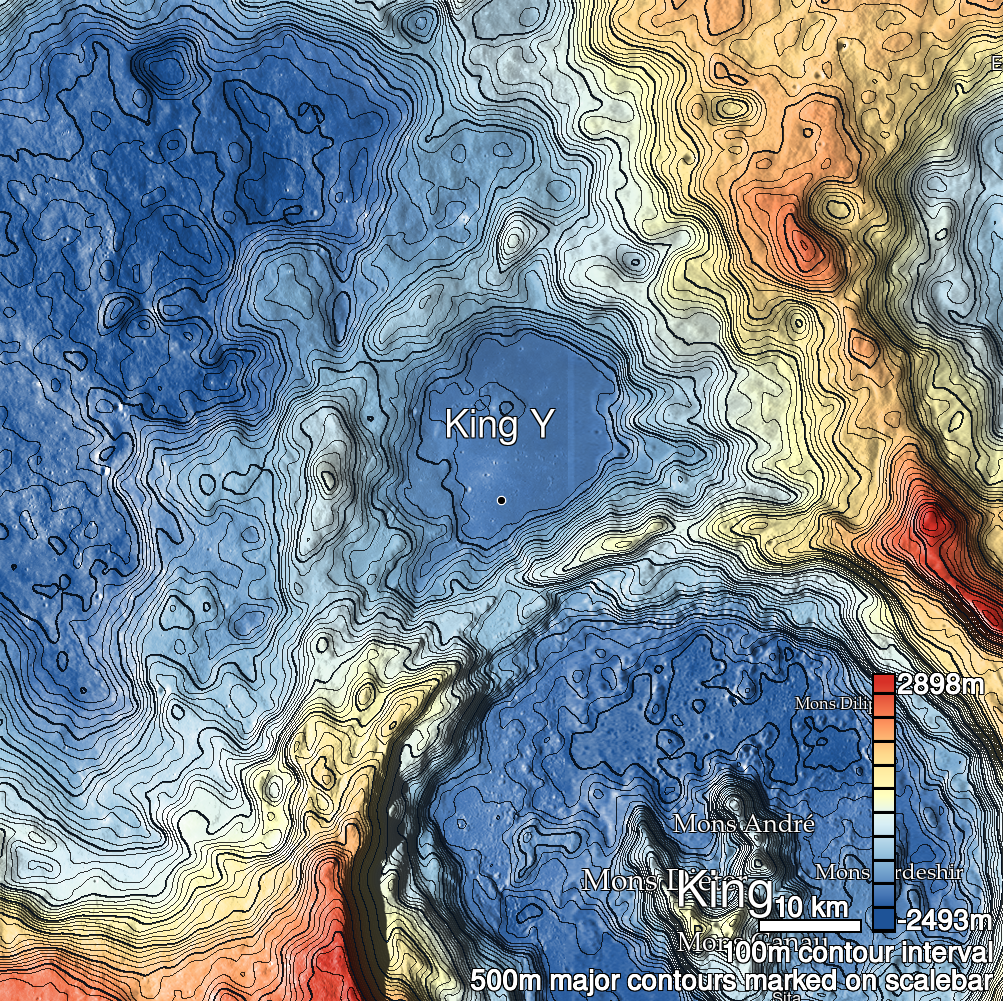

DTMs | NAC_DTM_KINGCRATER3 |
Clipping Width | 200 |
Other IMGs | |
Data Warning | All depths are very high-Sun, especially depth 3. Depth 1 is from shelf on W wall, depths 2 and 3 may be to shelf on W wall, or may be minimums. |
Entrance Ramp | N |
Overhang | ? |
Nearby Pits? | Y |
Nearby Fractures? | Y? |
Nearby Depressions? | Y |
In Dome | Y |
Beside Dome | N |
In Depression | N |
Colinear Pits | Y |
Colinear Depressions | Y |
Colinear Fractures | Y? |
