Pits Atlas: King 27
Impact Melt pit: King | |
---|---|
Name | King 27 |
Lat. | 6.5044 |
Long. | 119.8719 |
Desc. | Round pit at the SE edge of a PRF. The NW edge of the PRF (17m away) is collapsed, and there is an extensive fracture network to the S and E. There's some odd geometry on the S wall of the pit that is hard to parse. |
Types | |
Terrain | Impact Melt |
Host Feature | King |
Funnel Min. Diam. | 6 |
Funnel Max. Diam. | 9 |
Inner Min. Diam. | 4 |
Inner Max. Diam. | 6 |
Azimuth | 20 |
Depth | 9.0 |
Depth 1 | 8.7 |
Depth 2 | 8.7 |
Depth 3 | >9.0 |
Best Stereo Left | M136762839R |
Best Stereo Right | M136762839R |

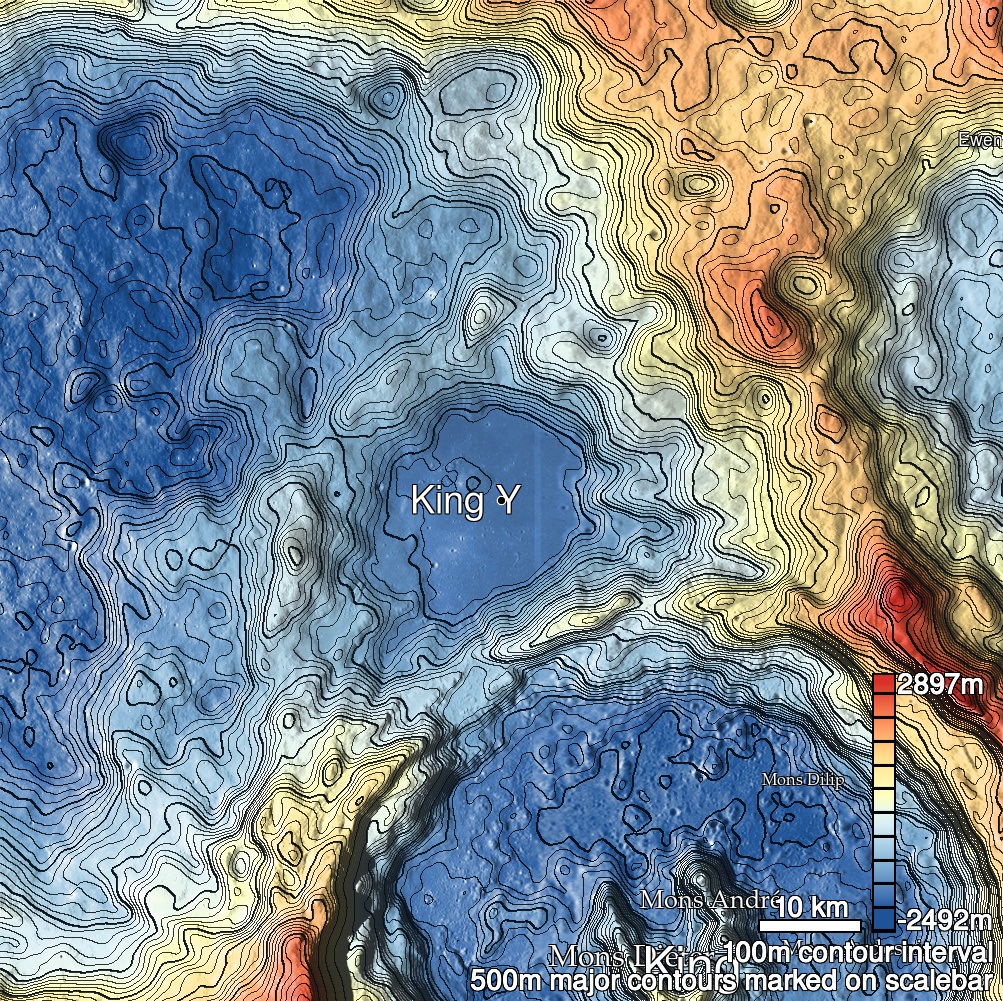

DTMs | NAC_DTM_KINGCRATER3 |
Clipping Width | 200 |
Other IMGs | |
Data Warning | Floor is only visible in the three highest-Sun images, and M1164027461R is too high-Sun and low-resolution to use. |
Entrance Ramp | N |
Overhang | ? |
Nearby Pits? | Y |
Nearby Fractures? | Y |
Nearby Depressions? | Y |
In Dome | Y |
Beside Dome | Y |
In Depression | N? |
Colinear Pits | N |
Colinear Depressions | N |
Colinear Fractures | Y |
