Pits Atlas: King 28
Impact Melt pit: King | |
---|---|
Name | King 28 |
Lat. | 6.3016 |
Long. | 119.8593 |
Desc. | Large linear collapse feature- looks like two parallel fractures formed over a void and the ground between them dropped. Mostly filled with blocks and boulders. The NE end forms a ramp to the surface, and there are a few places with fairly deep openings (depth measurements are in one such 11x9m opening near the NE end). Several tiny depressions/pits parallel this feature ~40m N, and there are several other shallow collapses and depressions in the area that hint at a larger connected network of voids. |
Types | |
Terrain | Impact Melt |
Host Feature | King |
Funnel Min. Diam. | 20 |
Funnel Max. Diam. | 223 |
Inner Min. Diam. | 15 |
Inner Max. Diam. | 156 |
Azimuth | 60 |
Depth | 22.0 |
Depth 1 | 24.4 |
Depth 2 | 26.0 |
Depth 3 | 16.3 |
Best Stereo Left | M136762839R |
Best Stereo Right | M136762839R |

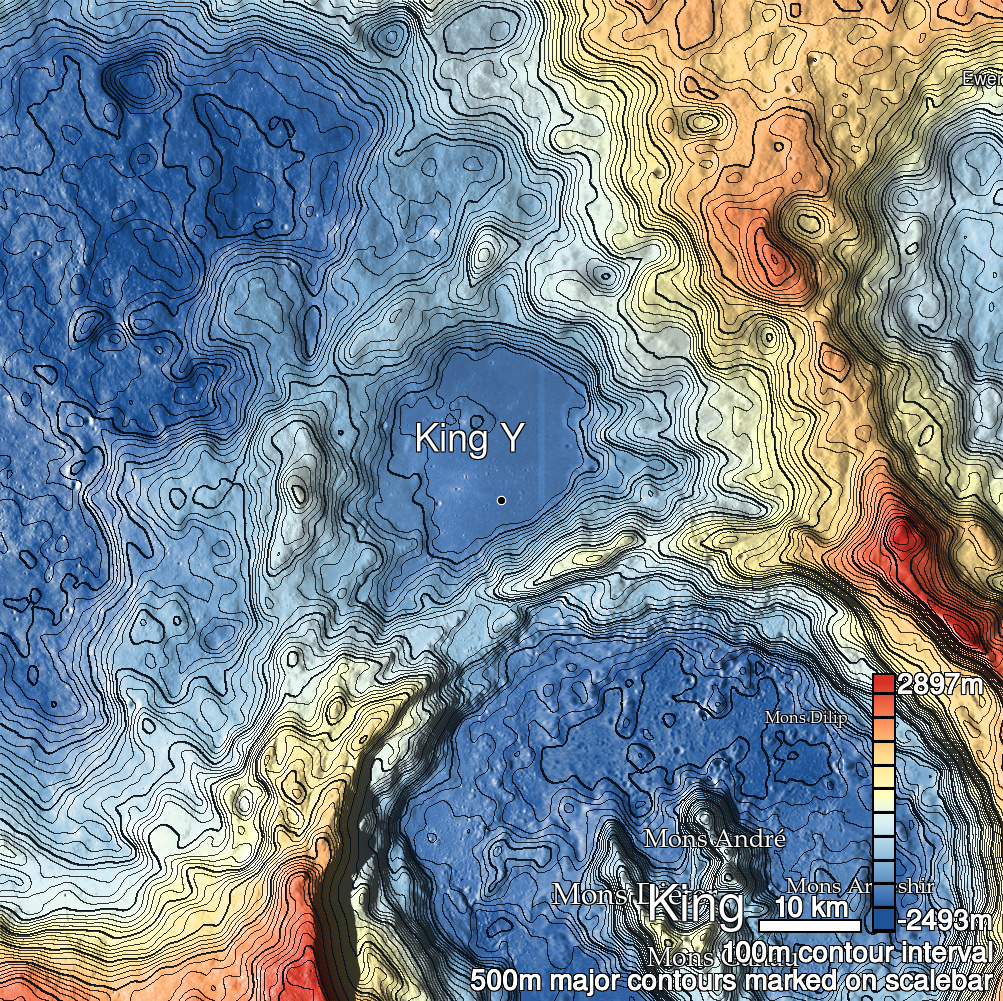

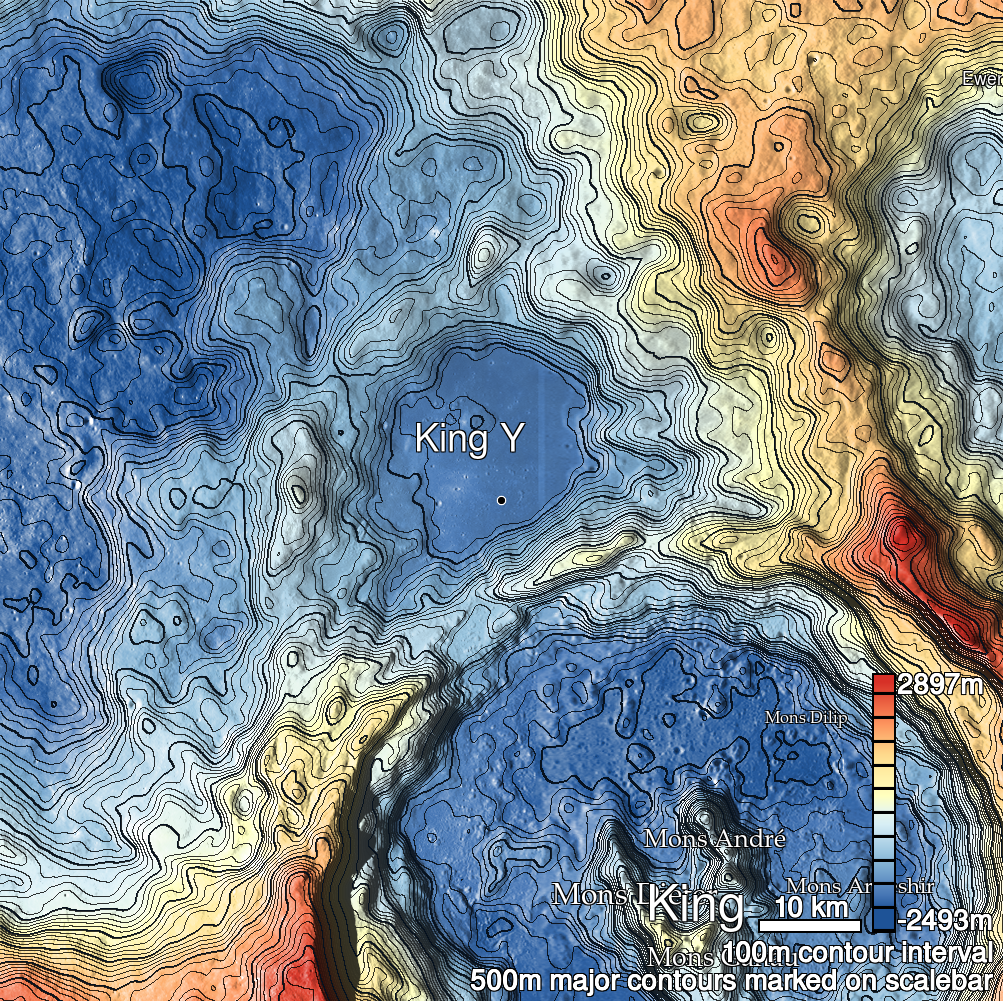

DTMs | NAC_DTM_KINGCRATER3 |
Clipping Width | 400 |
Other IMGs | M1135766659L |
Data Warning | |
Entrance Ramp | Y |
Overhang | ? |
Nearby Pits? | Y |
Nearby Fractures? | Y |
Nearby Depressions? | Y |
In Dome | N |
Beside Dome | N |
In Depression | N |
Colinear Pits | N |
Colinear Depressions | N |
Colinear Fractures | Y |
