Pits Atlas: Messier A 4a
Impact Melt, Fracture pit: Messier A | |
---|---|
Name | Messier A 4a |
Lat. | -2.044 |
Long. | 46.8825 |
Desc. | Elongated pit, clearly associated with a fracture system that covers most of a square kilometer, but is not itself attached to a fracture. There's a slight depression running south, where it joins up with some open fractures. There are a couple of other fracture-associate pits in the area of similar depth and lack of open fractures connected to them. Definitely a possibility for sub-surface passageways, if you don't mind falling rocks. |
Types | Fracture |
Terrain | Impact Melt |

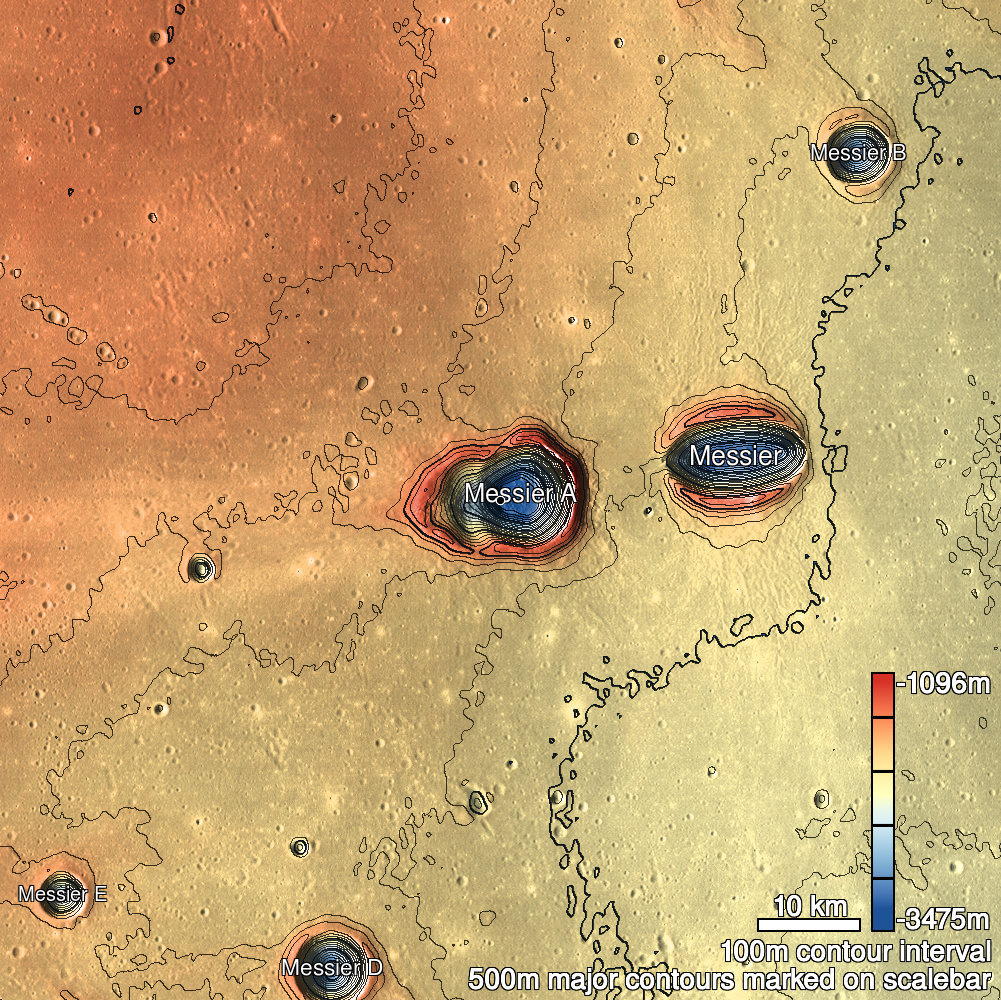

Host Feature | Messier A |
Funnel Min. Diam. | 14 |
Funnel Max. Diam. | 33 |
Inner Min. Diam. | 9 |
Inner Max. Diam. | 22 |
Azimuth | 175 |
Depth | 14.0 |
Depth 1 | 16.0 |
Depth 2 | 11.8 |
Depth 3 | >8.0 |
Best Stereo Left | M190294287L |
Best Stereo Right | M190294287L |
DTMs | |
Clipping Width | 200 |
Other IMGs | |
Data Warning | |
Entrance Ramp | N |
Overhang | ? |
Nearby Pits? | Y |
Nearby Fractures? | Y |
Nearby Depressions? | Y? |
In Dome | N |
Beside Dome | N |
In Depression | N |
Colinear Pits | N |
Colinear Depressions | N |
Colinear Fractures | Y |
