Pits Atlas: Ohm 2
Impact Melt pit: Ohm | |
---|---|
Name | Ohm 2 |
Lat. | 18.6687 |
Long. | 246.4141 |
Desc. | Irregular pit with very pronounced funnel. No visible floor in the available images. North wall appears to slope down to the south wall, may be traversable. There is a 150m long, 40m wide straight, round-bottomed depression lies ~100m NW. Possible subtle depression running parallel to that with Ohm 2 at its E end. |
Types | |
Terrain | Impact Melt |

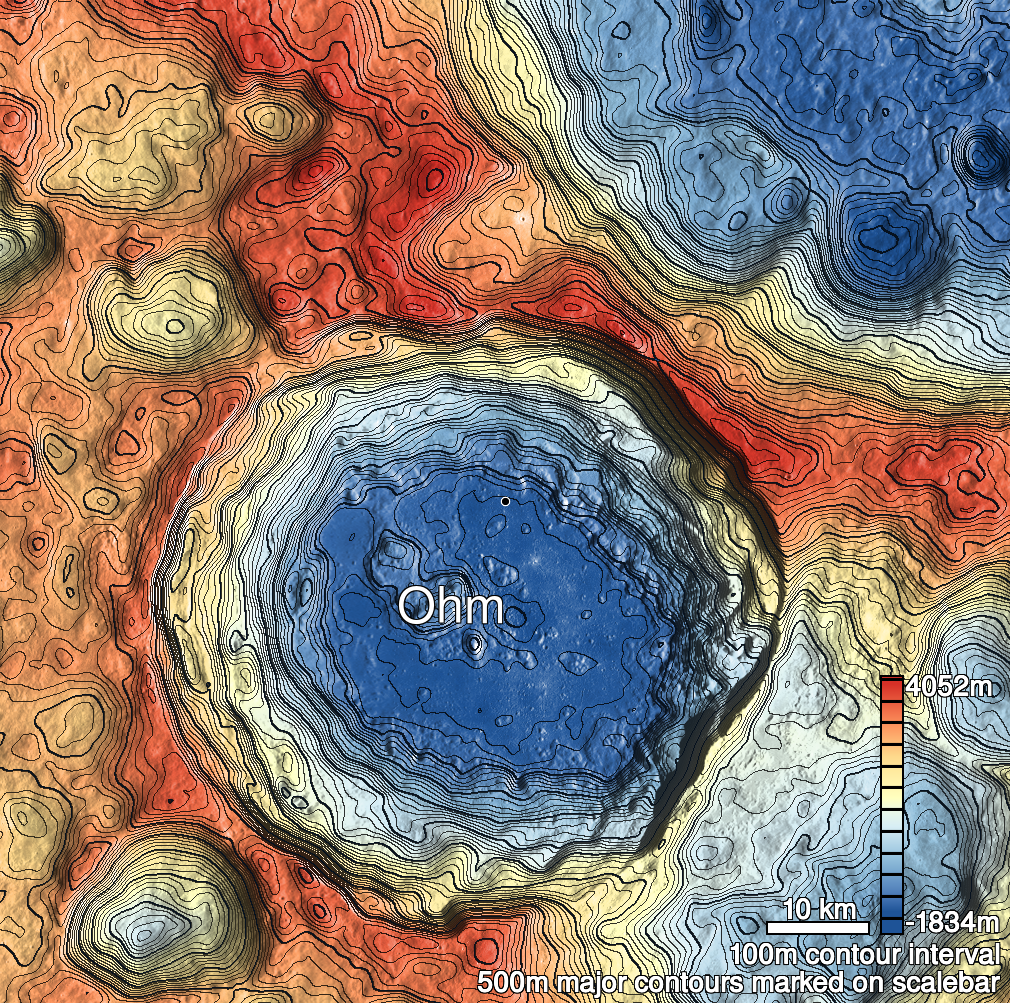

Host Feature | Ohm |
Funnel Min. Diam. | 26 |
Funnel Max. Diam. | 36 |
Inner Min. Diam. | N/A |
Inner Max. Diam. | 12 |
Azimuth | 75 |
Depth | 16.0 |
Depth 1 | 14.3 |
Depth 2 | 15.6 |
Depth 3 | 18.5 |
Best Stereo Left | M1213833178L |
Best Stereo Right | M1213833178L |
DTMs | |
Clipping Width | 200 |
Other IMGs | |
Data Warning | |
Entrance Ramp | Y? |
Overhang | ? |
Nearby Pits? | N |
Nearby Fractures? | N |
Nearby Depressions? | Y |
In Dome | N |
Beside Dome | N |
In Depression | N? |
Colinear Pits | N |
Colinear Depressions | Y |
Colinear Fractures | N |
