Pits Atlas: Stevinus 5
Impact Melt pit: Stevinus | |
---|---|
Name | Stevinus 5 |
Lat. | -32.4519 |
Long. | 54.6746 |

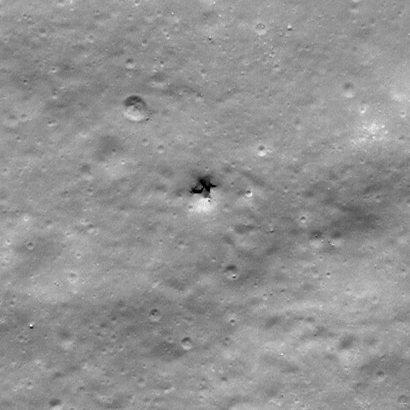

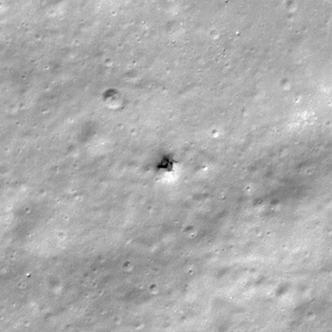

Desc. | Small hourglass-shaped pit with pronounced funnel and probably rounded floor. NW wall has a large projecting section that appears lower than most of the rest of the rim. South side of funnel is deeper than the rest, but probably still has a couple meters of vertical wall. 45 degree slewed image shows a shadow where a lit wall would be expected if there were no overhang, so there may be an overhang, deeper section, or hard-to-identify boulder on the eastern side. No nearby features of note. |
Types | |
Terrain | Impact Melt |

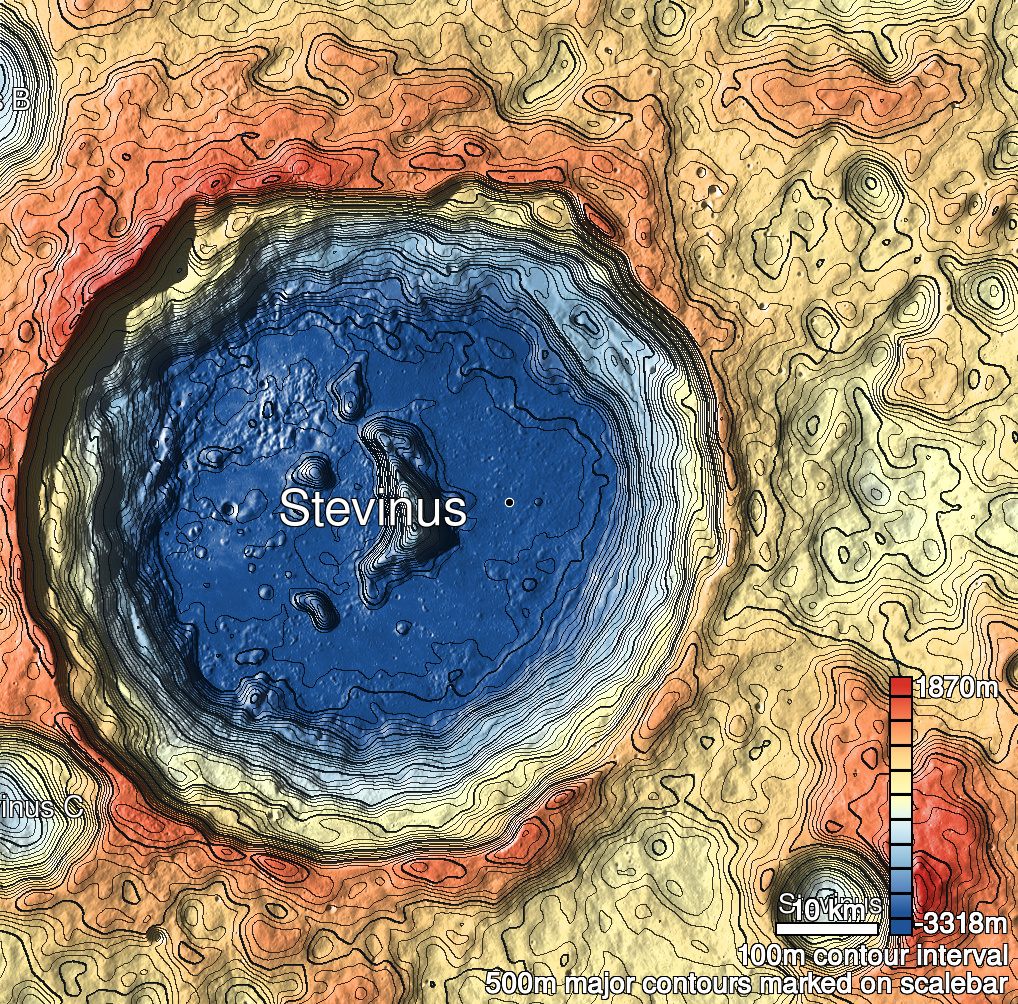

Host Feature | Stevinus |
Funnel Min. Diam. | 17 |
Funnel Max. Diam. | 18 |
Inner Min. Diam. | 6 |
Inner Max. Diam. | 6 |
Azimuth | 0 |
Depth | 6.0 |
Depth 1 | 7.5 |
Depth 2 | 4.1 |
Depth 3 | >2.0 |
Best Stereo Left | M1105574923R |
Best Stereo Right | M1105574923R |
DTMs | |
Clipping Width | 200 |
Other IMGs | |
Data Warning | Depth 1 may be from funnel, not rim; Depth 2 is at very high Sun; Depth 3 is from low point on NW wall. No good lighting for shadow measurements of this pit. No long axis. |
Entrance Ramp | N? |
Overhang | Y? |
Nearby Pits? | N |
Nearby Fractures? | N |
Nearby Depressions? | N |
In Dome | Y |
Beside Dome | Y? |
In Depression | N |
Colinear Pits | N |
Colinear Depressions | N |
Colinear Fractures | N |
