Pits Atlas: Stevinus 7

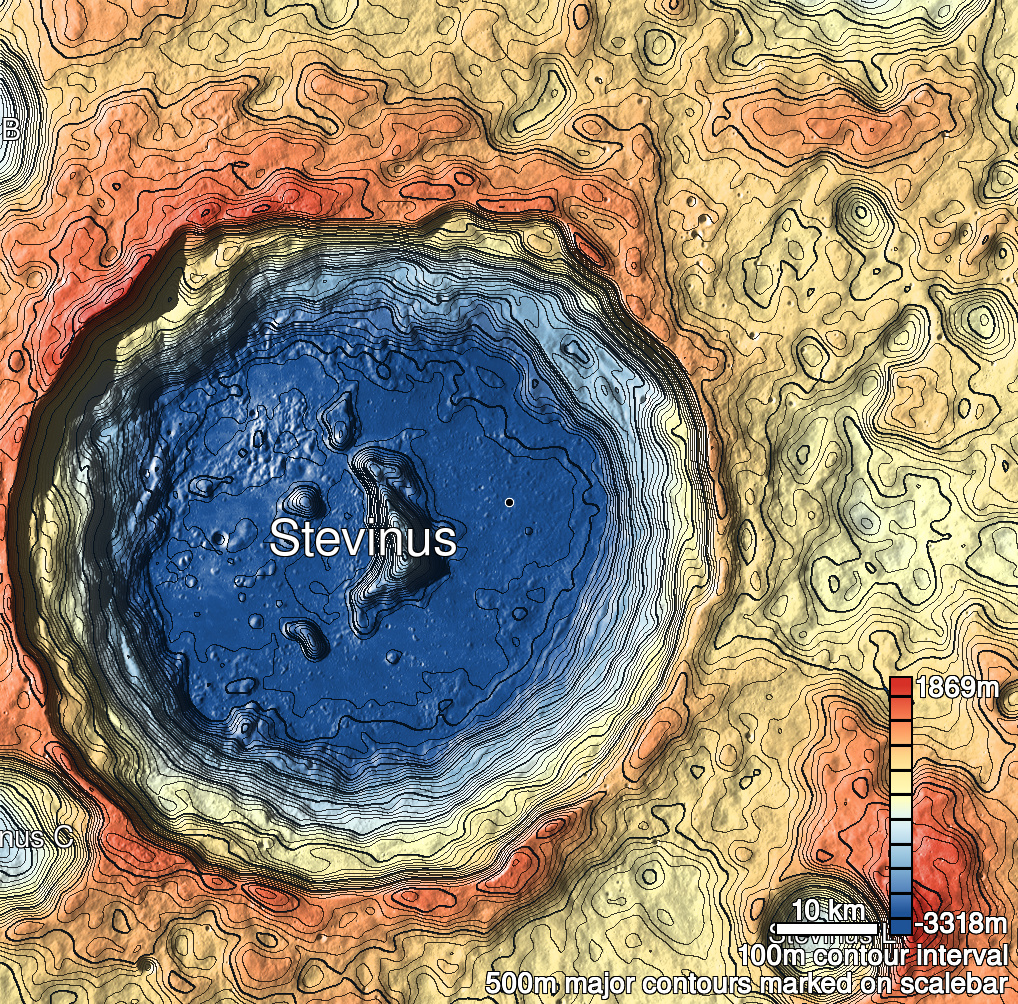

Impact Melt pit: Stevinus | |
---|---|
Name | Stevinus 7 |
Lat. | -32.3554 |
Long. | 54.7126 |
Desc. | Elliptical pit, with a comparably-sized elliptical depression running at right-angles NW from the SW end. This second depression appears to have a 1-2m rounded(?) rim, and slopes down into the main pit, but may not get near the floor. It is unclear if the floor of the main pit is visible in any images, though the very tip of a boulder may be slightly illuminated ~2m down in M154873550L. No nearby features of note. |
Types | |
Terrain | Impact Melt |
Host Feature | Stevinus |
Funnel Min. Diam. | 12 |
Funnel Max. Diam. | 14 |
Inner Min. Diam. | 4 |
Inner Max. Diam. | 7 |
Azimuth | 103 |
Depth | >7.0 |
Depth 1 | >6.0 |
Depth 2 | >7.0 |
Depth 3 | >5.0 |
Best Stereo Left | M1105574923R |
Best Stereo Right | M1105574923R |
DTMs | |
Clipping Width | 200 |
Other IMGs | |
Data Warning | |
Entrance Ramp | Y |
Overhang | ? |
Nearby Pits? | N |
Nearby Fractures? | N |
Nearby Depressions? | N |
In Dome | N |
Beside Dome | N |
In Depression | N |
Colinear Pits | N |
Colinear Depressions | N |
Colinear Fractures | N |
