Pits Atlas: Tycho 2
Impact Melt pit: Tycho | |
---|---|
Name | Tycho 2 |
Lat. | -42.5978 |
Long. | 347.8196 |
Desc. | Semicircular pit, possibly fracture-associated (at corner between two small fractures' trends, and there's a depression/fracture running ~20m south). There's a larger series of fractures running N-S ~120m west. Possibly overhang visible in slewed image M188313427L, but don't have a good non-slewed comparison image. |
Types | |
Terrain | Impact Melt |

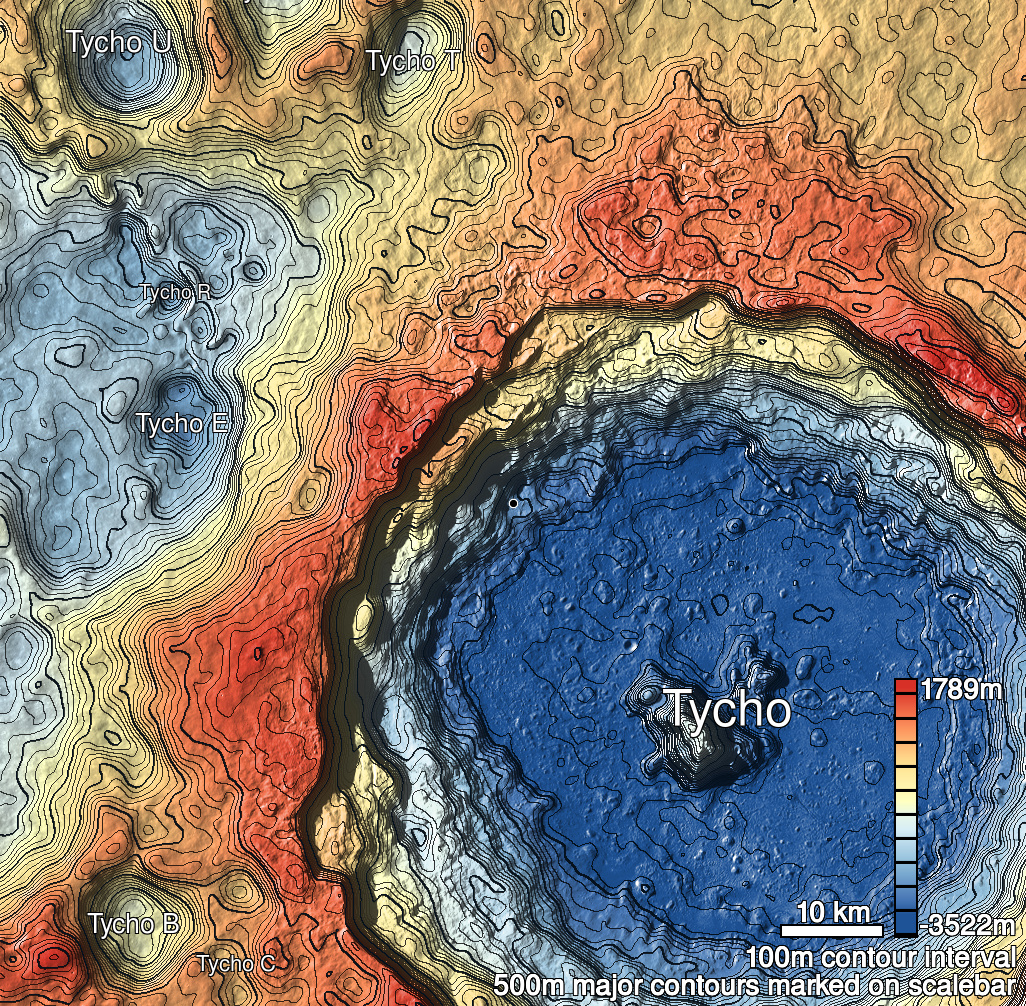

Host Feature | Tycho |
Funnel Min. Diam. | 12 |
Funnel Max. Diam. | 18 |
Inner Min. Diam. | 6 |
Inner Max. Diam. | 13 |
Azimuth | 15 |
Depth | 3.0 |
Depth 1 | 2.7 |
Depth 2 | >3.0 |
Depth 3 | N/A |
Best Stereo Left | M188320575L |
Best Stereo Right | M188320575L |
DTMs | |
Clipping Width | 200 |
Other IMGs | |
Data Warning | Funnel measure does not include connected fracture/depression. Depth from top of funnel is 6.4m in M1129575693L. |
Entrance Ramp | N |
Overhang | Y? |
Nearby Pits? | Y? |
Nearby Fractures? | Y |
Nearby Depressions? | N |
In Dome | N |
Beside Dome | N |
In Depression | N |
Colinear Pits | N |
Colinear Depressions | N |
Colinear Fractures | Y |
