Pits Atlas: Tycho 3
Impact Melt pit: Tycho | |
---|---|
Name | Tycho 3 |
Lat. | -42.9449 |
Long. | 347.7857 |

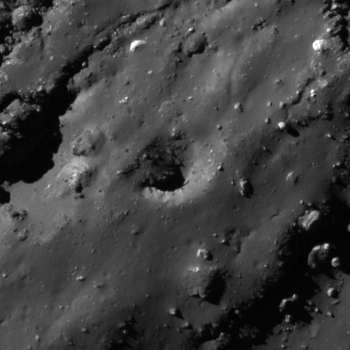

Desc. | A curved pit with a very pronounced funnel. The floor/wall slopes evenly down from the north rim. Is at the top of a positive relief features, and is in line with three other collapse features ~120, ~180, and ~200m to the south. There is a large fracture-associated pit ~50m west, on the west edge of the host PRF. |
Types | |
Terrain | Impact Melt |

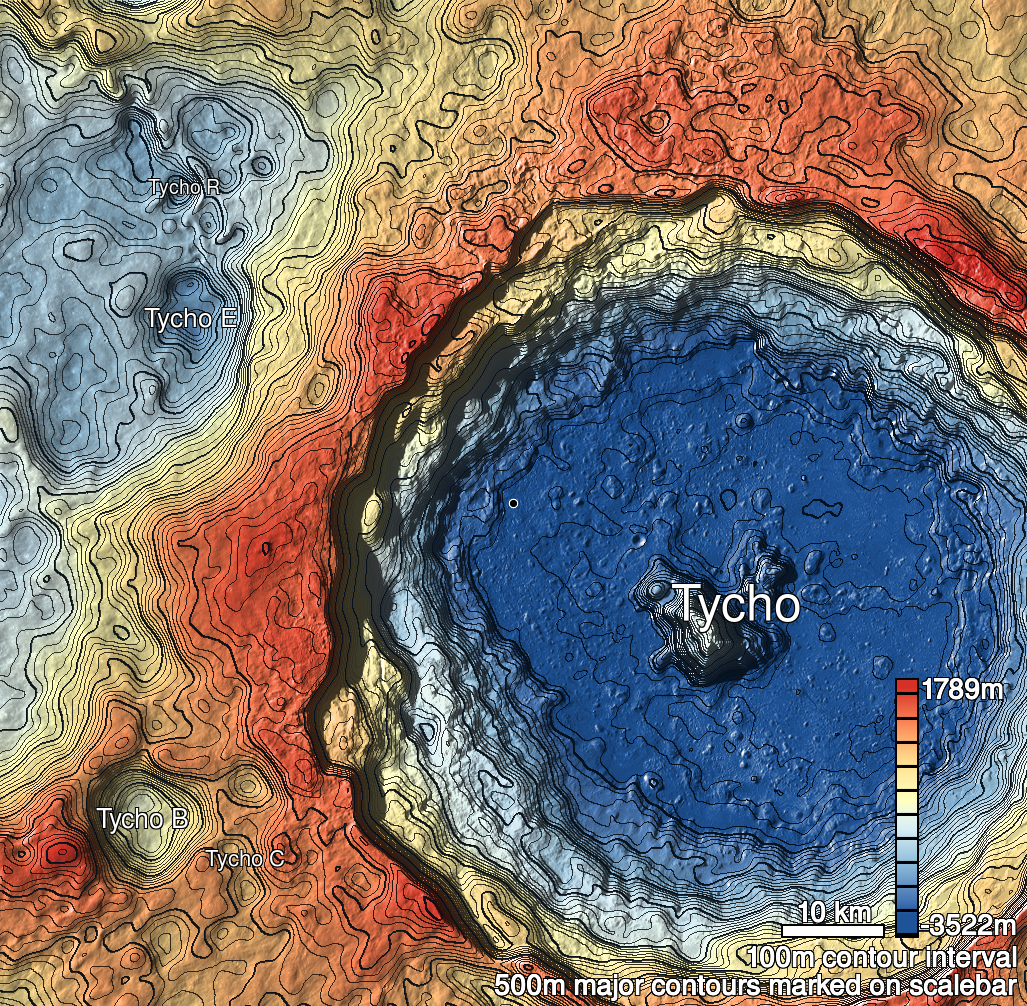

Host Feature | Tycho |
Funnel Min. Diam. | 40 |
Funnel Max. Diam. | 43 |
Inner Min. Diam. | 9 |
Inner Max. Diam. | 18 |
Azimuth | 50 |
Depth | >6.0 |
Depth 1 | >6.0 |
Depth 2 | >6.0 |
Depth 3 | N/A |
Best Stereo Left | M1182543691R |
Best Stereo Right | M1182543691R |
DTMs | |
Clipping Width | 200 |
Other IMGs | M188313427L, M188320575L |
Data Warning | The only images that show the floor are part of a stereo pair. |
Entrance Ramp | Y |
Overhang | ? |
Nearby Pits? | Y |
Nearby Fractures? | Y |
Nearby Depressions? | Y |
In Dome | Y |
Beside Dome | N |
In Depression | N |
Colinear Pits | Y |
Colinear Depressions | Y |
Colinear Fractures | Y |
