Pits Atlas: Tycho 5b
Uncertain, Impact Melt pit: Tycho | |
---|---|
Name | Tycho 5b |
Lat. | -42.6179 |
Long. | 348.6363 |
Desc. | Second pit going NE in the chain. Rounded floor over most of the area, but the north wall appears to be vertical, with no floor rounding visible before the floor disappears into shadow. There is also a bit of a drop-off at the SW end. There is a slight ridge between this pit and Tycho 5a. |
Types | Uncertain |
Terrain | Impact Melt |

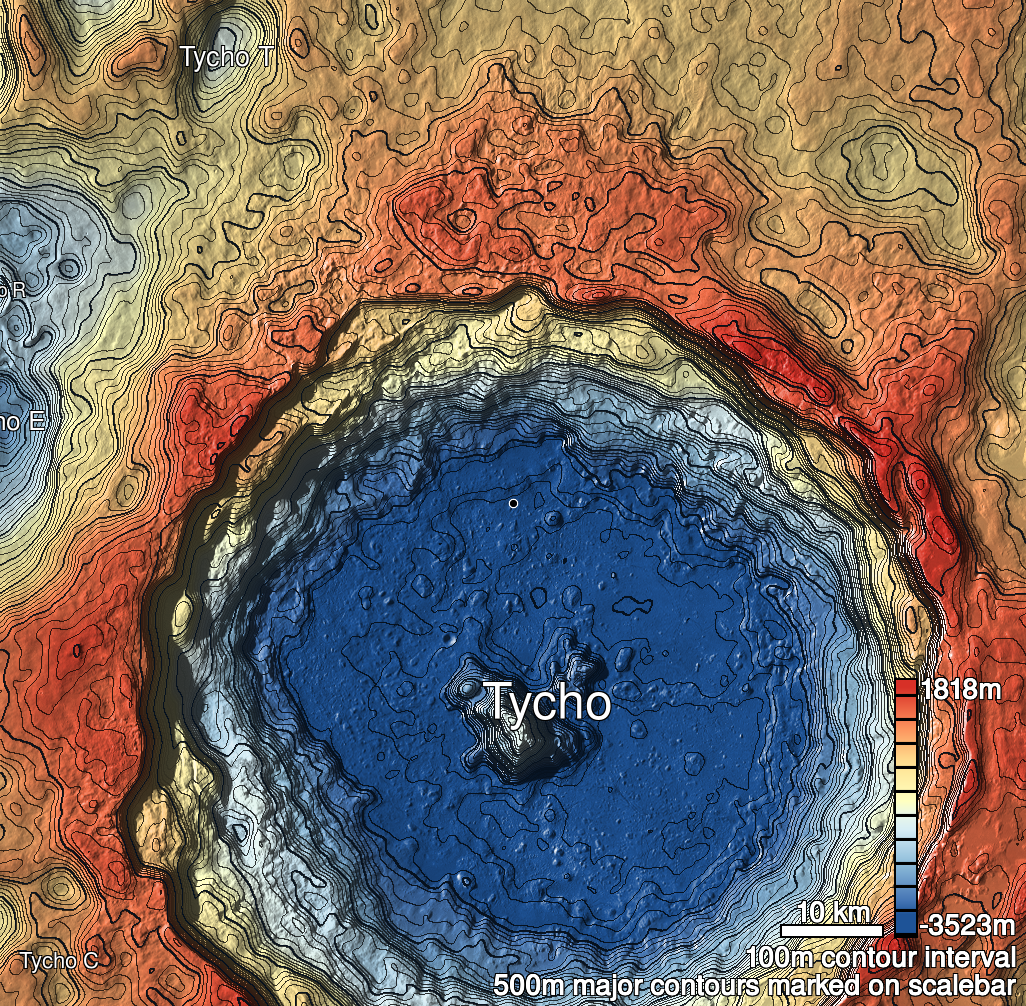

Host Feature | Tycho |
Funnel Min. Diam. | 50 |
Funnel Max. Diam. | 86 |
Inner Min. Diam. | 42 |
Inner Max. Diam. | 77 |
Azimuth | 50 |
Depth | 15.0 |
Depth 1 | 15.9 |
Depth 2 | 14.6 |
Depth 3 | N/A |
Best Stereo Left | M1206074763R |
Best Stereo Right | M1206074763R |
DTMs | |
Clipping Width | 200 |
Other IMGs | M111661378L |
Data Warning | |
Entrance Ramp | Y |
Overhang | ? |
Nearby Pits? | Y |
Nearby Fractures? | N |
Nearby Depressions? | Y |
In Dome | N |
Beside Dome | N |
In Depression | N |
Colinear Pits | Y |
Colinear Depressions | N |
Colinear Fractures | N |
