Pits Atlas: Tycho 6
Impact Melt pit: Tycho | |
---|---|
Name | Tycho 6 |
Lat. | -42.8894 |
Long. | 349.3296 |
Desc. | Small, triangular flat-floored, vertical-walled pit. 5m fractures from E and W ends. Lots of curved depressions and little collapses around. |
Types | |
Terrain | Impact Melt |

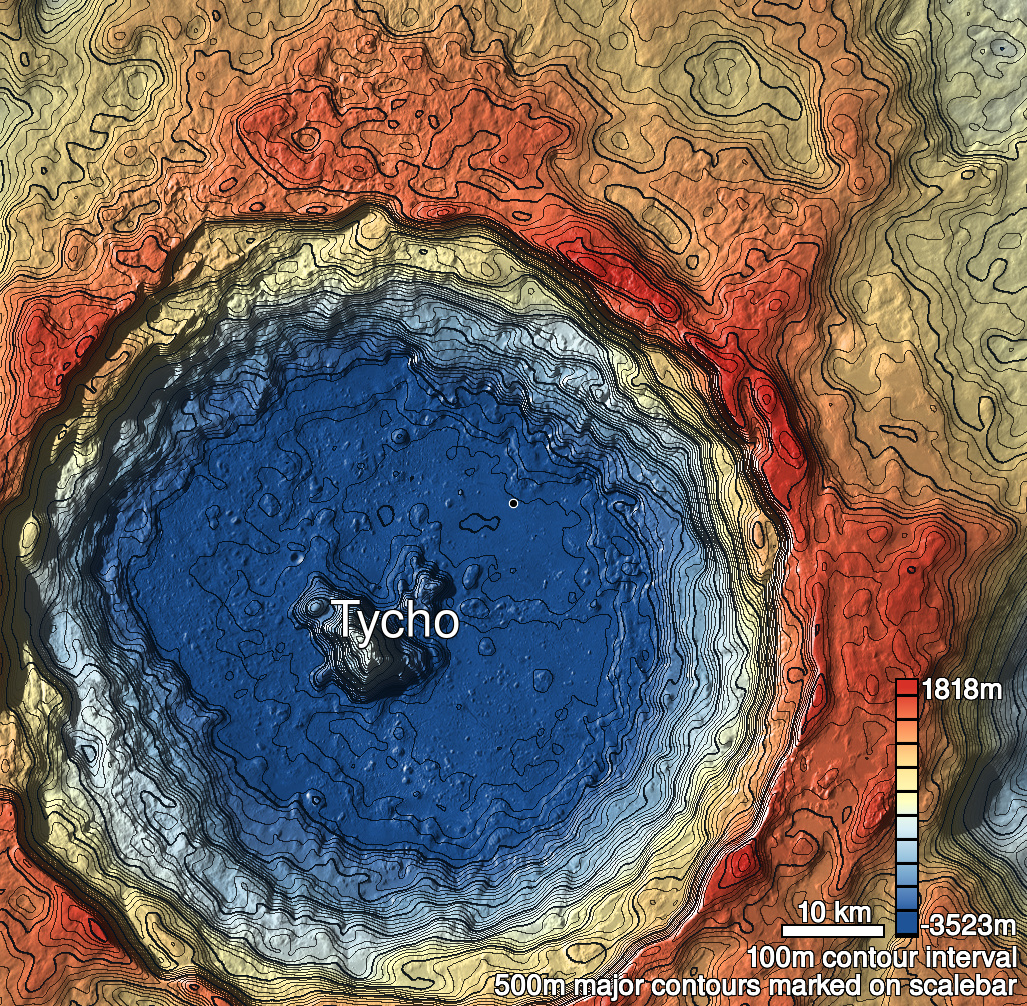

Host Feature | Tycho |
Funnel Min. Diam. | 27 |
Funnel Max. Diam. | 30 |
Inner Min. Diam. | 19 |
Inner Max. Diam. | 20 |
Azimuth | 120 |
Depth | 7.0 |
Depth 1 | 8.6 |
Depth 2 | 8.4 |
Depth 3 | 4.3 |
Best Stereo Left | M1164903641L |
Best Stereo Right | M1164903641L |
DTMs | |
Clipping Width | 200 |
Other IMGs | |
Data Warning | Depth 3 is from further south on the floor than Depths 1 and 2. The floor may slope up towards the south. Stereo is accidental, and may on work for manual viewing. |
Entrance Ramp | N |
Overhang | ? |
Nearby Pits? | N? |
Nearby Fractures? | N |
Nearby Depressions? | Y |
In Dome | N? |
Beside Dome | N? |
In Depression | N |
Colinear Pits | N |
Colinear Depressions | N |
Colinear Fractures | N |
