Pits Atlas: Tycho 12
Impact Melt pit: Tycho | |
---|---|
Name | Tycho 12 |
Lat. | -43.2169 |
Long. | 349.5787 |
Desc. | Crescent-shaped pit. SW wall is ramp from rim to [lost in shadow], other walls appear vertical. ~65m ENE of, and slightly out of line with, the N end of a NE-SW-trending perfectly straight sharp-bottomed depression- there are a couple other depressions paralleling it at 1-200m spacing. Some large collapses nearby, and a probable ooze dome two linear depressions (~250m) to the SE. |
Types | |
Terrain | Impact Melt |

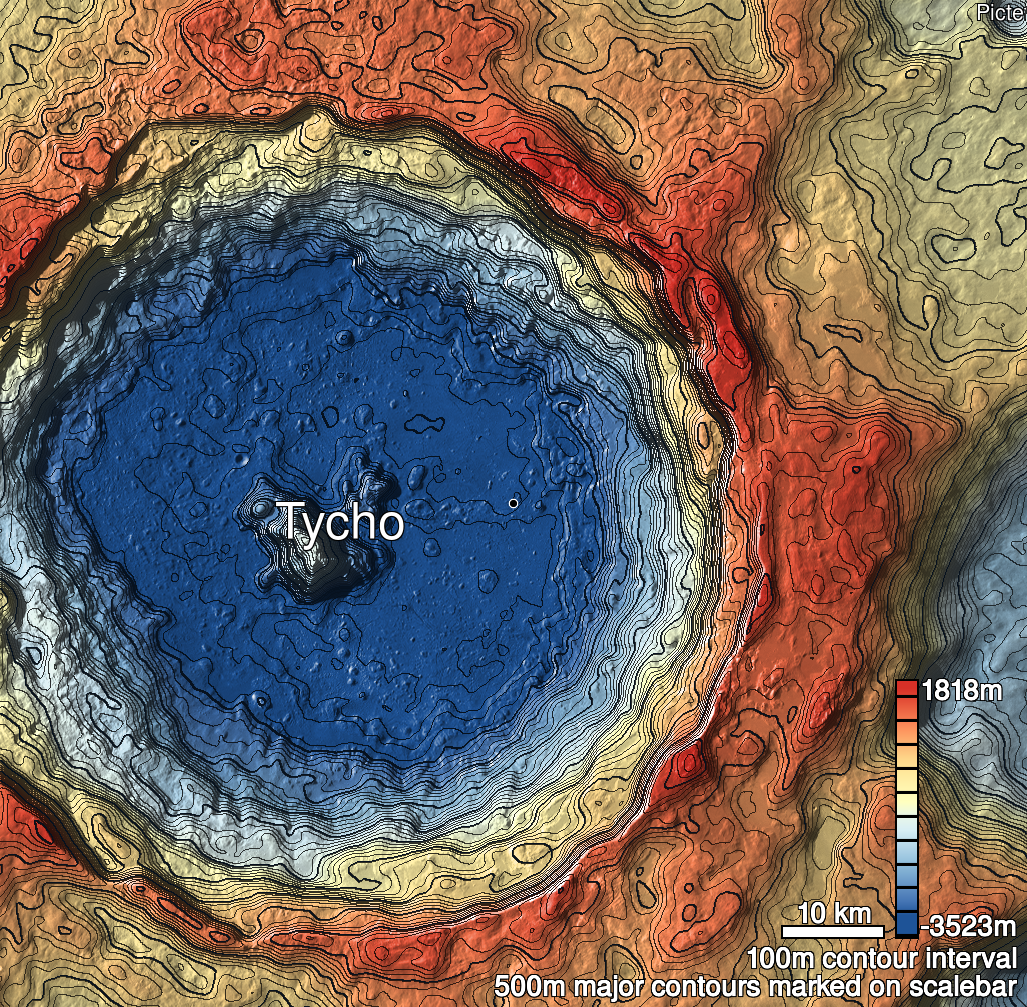

Host Feature | Tycho |
Funnel Min. Diam. | 31 |
Funnel Max. Diam. | 47 |
Inner Min. Diam. | 16 |
Inner Max. Diam. | 34 |
Azimuth | 50 |
Depth | 15.0 |
Depth 1 | 13.1 |
Depth 2 | 16.8 |
Depth 3 | 16.0 |

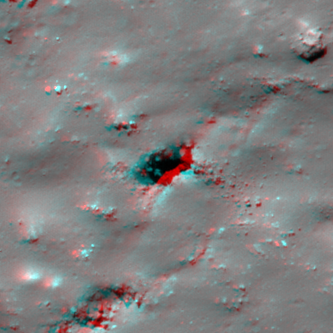

Best Stereo Left | M1177818994L |
Best Stereo Right | M1177818994L |
DTMs | |
Clipping Width | 200 |

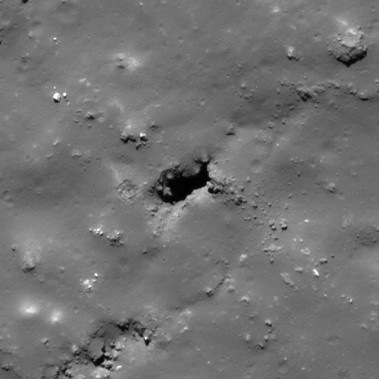

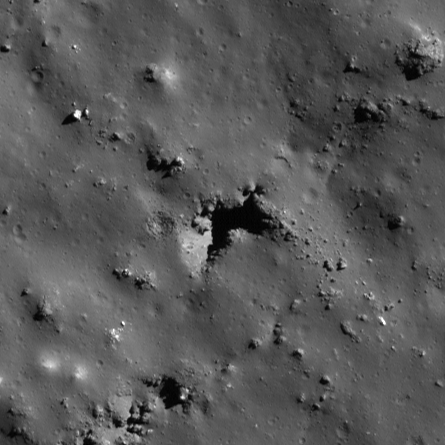

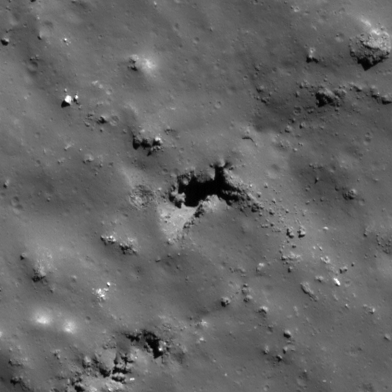

Other IMGs | |
Data Warning | Depths are from varied points on the rim, which are at varied heights. |
Entrance Ramp | Y |
Overhang | ? |
Nearby Pits? | N |
Nearby Fractures? | N? |
Nearby Depressions? | Y |
In Dome | N |
Beside Dome | N |
In Depression | N |
Colinear Pits | N |
Colinear Depressions | Y |
Colinear Fractures | N |
