Pits Atlas: Tycho 16
Impact Melt pit: Tycho | |
---|---|
Name | Tycho 16 |
Lat. | -43.102 |
Long. | 347.7799 |
Desc. | Irregular pit in the top of a positive feature/between some linear-ish depressions. Floor is somewhat rounded, and walls have several protrusions. North wall is a slope almost from the surface to the floor. S wall is extremely steel slope to floor. West wall appears solid (albeit tiered) in slewed image. East wall is unseen. There is a fracture system with some large openings ~300m to the west. No linear features are in line with the pit. |
Types | |
Terrain | Impact Melt |

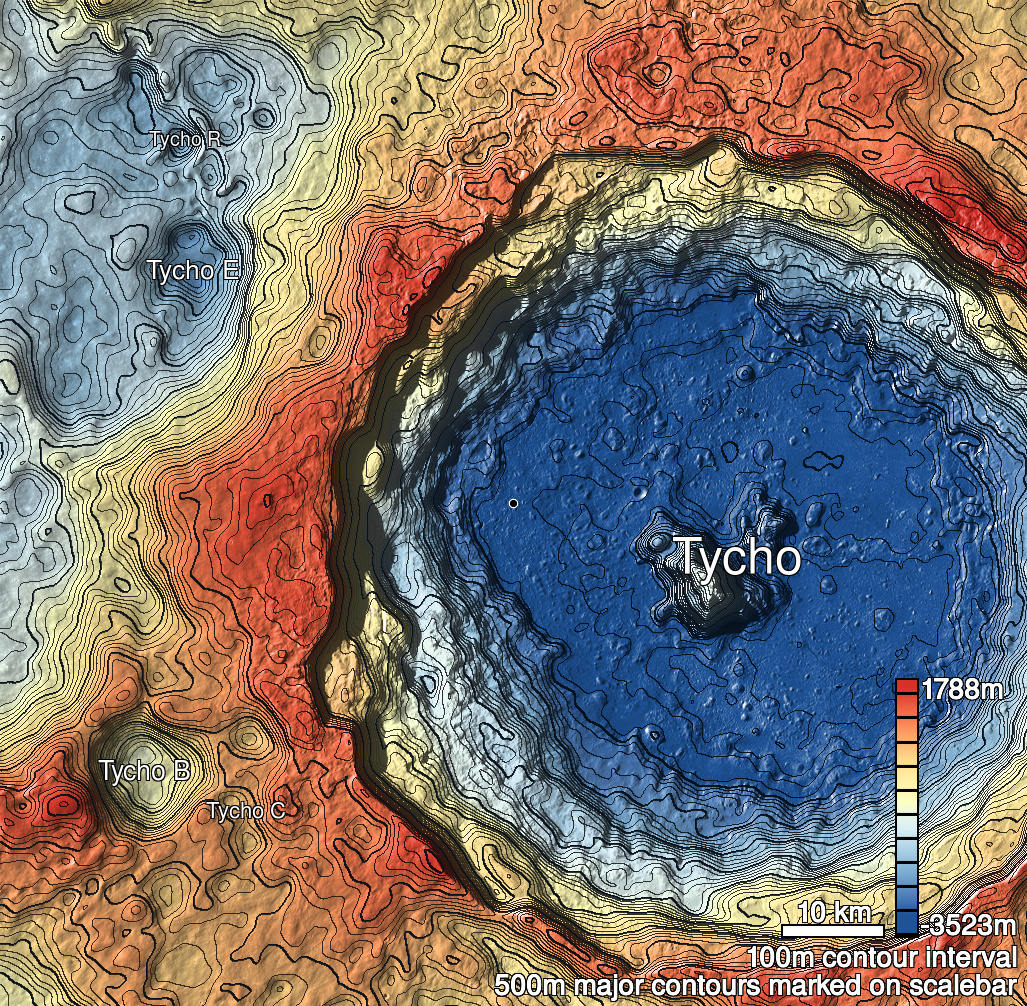

Host Feature | Tycho |
Funnel Min. Diam. | 48 |
Funnel Max. Diam. | 68 |
Inner Min. Diam. | 40 |
Inner Max. Diam. | 60 |
Azimuth | 165 |
Depth | 18.0 |
Depth 1 | 17.6 |
Depth 2 | >20.0 |
Depth 3 | >8.0 |
Best Stereo Left | M1182543691R |
Best Stereo Right | M1182543691R |
DTMs | |
Clipping Width | 200 |
Other IMGs | M188313427L, M188320575L |
Data Warning | Only one non-slewed image shows floor, but shadow in that image is near lowest point. |
Entrance Ramp | Y? |
Overhang | N? |
Nearby Pits? | Y |
Nearby Fractures? | Y |
Nearby Depressions? | Y |
In Dome | Y |
Beside Dome | N |
In Depression | N |
Colinear Pits | N |
Colinear Depressions | Y |
Colinear Fractures | N |
