Pits Atlas: Tycho 17a
Impact Melt pit: Tycho | |
---|---|
Name | Tycho 17a |
Lat. | -43.0855 |
Long. | 348.2422 |

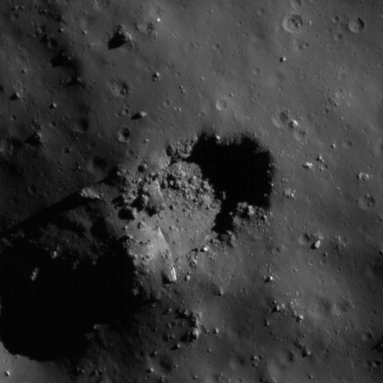

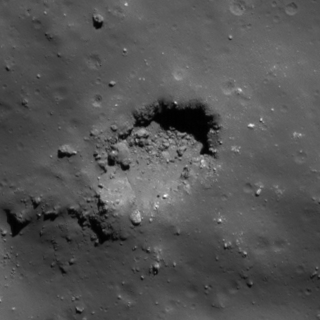

Desc. | Southern of two large bowl-shaped pits in a hill. 17a is at the peak, 17b is on the northeastern flank (150m N). There is a ~N-S-trending depression to the west. The SW wall of this pit is a ramp from ~surface to floor; the other walls appear uncollapsed. The floor is covered in 1-5m boulders. |
Types | |
Terrain | Impact Melt |
Host Feature | Tycho |
Funnel Min. Diam. | 61 |
Funnel Max. Diam. | 86 |
Inner Min. Diam. | 42 |
Inner Max. Diam. | 72 |
Azimuth | 50 |
Depth | 16.0 |
Depth 1 | 17.3 |
Depth 2 | 16.3 |
Depth 3 | 15.1 |

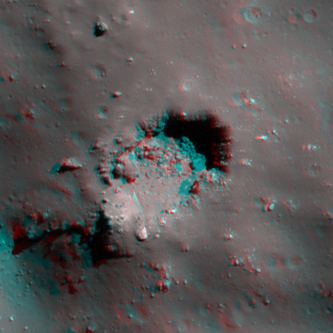

Best Stereo Left | M1167263804L |
Best Stereo Right | M1167263804L |
DTMs | |
Clipping Width | 200 |
Other IMGs | |
Data Warning | |
Entrance Ramp | Y? |
Overhang | ? |
Nearby Pits? | Y |
Nearby Fractures? | N |
Nearby Depressions? | Y |
In Dome | Y |
Beside Dome | N |
In Depression | N |
Colinear Pits | N |
Colinear Depressions | N |
Colinear Fractures | N |
