Pits Atlas: Wood T 1b
Impact Melt pit: Wood T | |
---|---|
Name | Wood T 1b |
Lat. | 43.8862 |
Long. | 235.7613 |

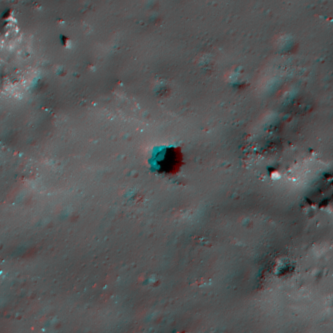

Desc. | Very circular pit- no image shows much of the floor, but it looks like an absolutely classic Tranquillitatis-style pit with minimal funnel. In stereo image, no visible back wall at 12 degree slew. |
Types | |
Terrain | Impact Melt |

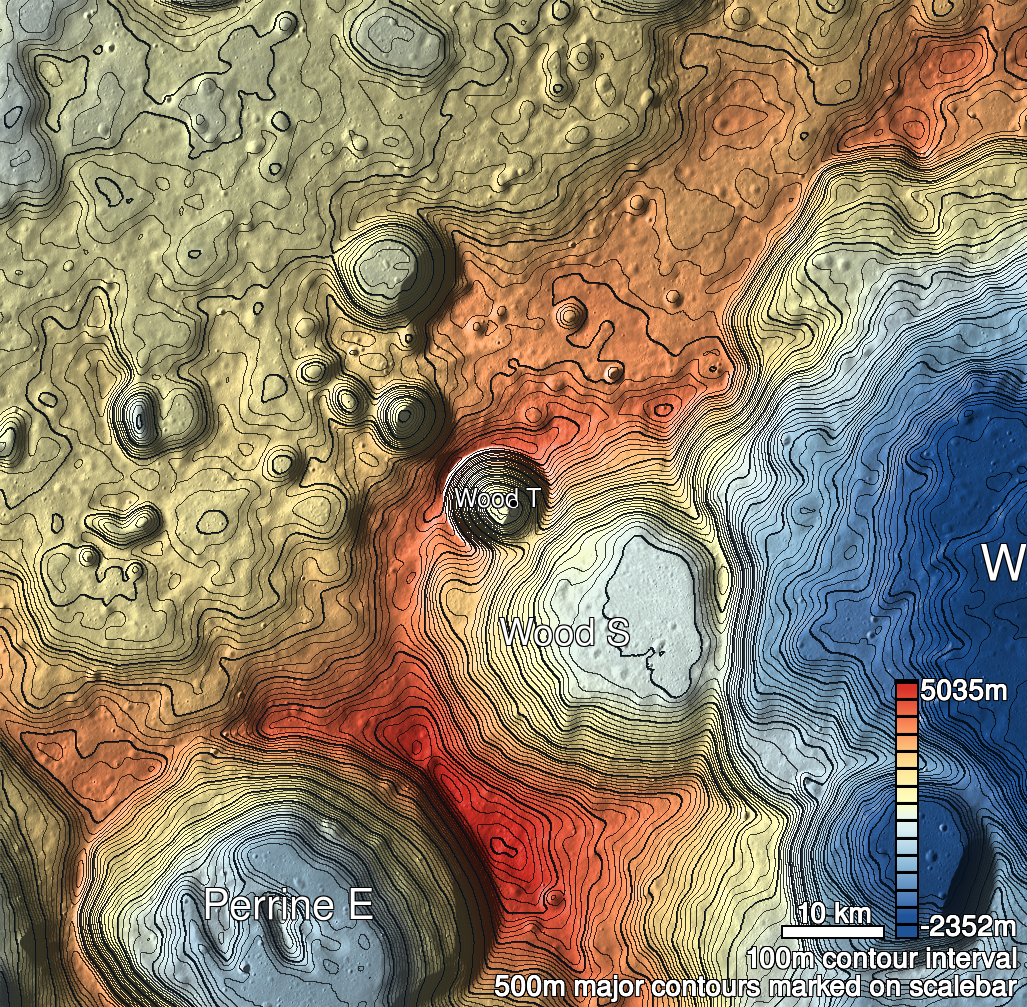

Host Feature | Wood T |
Funnel Min. Diam. | 18 |
Funnel Max. Diam. | 23 |
Inner Min. Diam. | 14 |
Inner Max. Diam. | 17 |
Azimuth | 30 |
Depth | 11.0 |
Depth 1 | 9.5 |
Depth 2 | 12.0 |
Depth 3 | 10.8 |
Best Stereo Left | M143078925L |
Best Stereo Right | M143078925L |
DTMs | |
Clipping Width | 200 |
Other IMGs | |

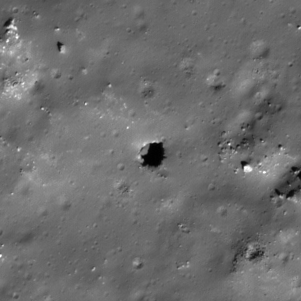

Data Warning | Depths 1 and 2 are from stereo pair M143072142L/M143078925L (the only images which unambiguously show floor), which have emission angles of 8.8 and 12.8 degrees, respectively. M193783245R and M1158545901R are lit by crater wall-shine. |
Entrance Ramp | N |
Overhang | Y? |
Nearby Pits? | Y |
Nearby Fractures? | Y |
Nearby Depressions? | N |
In Dome | Y |
Beside Dome | Y? |
In Depression | N |
Colinear Pits | N |
Colinear Depressions | N |
Colinear Fractures | N |
