Pits Atlas: Crookes 6
Impact Melt pit: Crookes | |
---|---|
Name | Crookes 6 |
Lat. | -10.0854 |
Long. | 194.8702 |

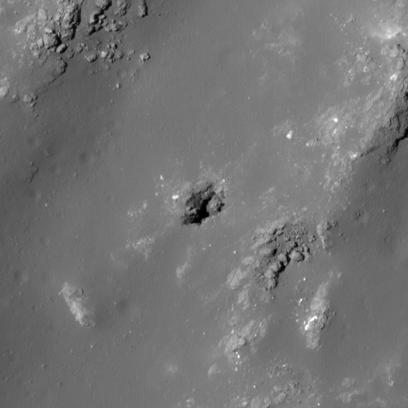

Desc. | Diamond-shaped pit in the NW side of a NNE-SSW trending ridge (part of a set of at least three such ridges, spaced at ~150m intervals). There is a ~8m boulder filling the NE half of the pit, complicating shadow measurements. No other pits in the area, but there's a possible collapse-caused depression ~35m ESE at the top of the ridge. |
Types | |
Terrain | Impact Melt |
Host Feature | Crookes |
Funnel Min. Diam. | 20 |
Funnel Max. Diam. | 28 |
Inner Min. Diam. | 9 |
Inner Max. Diam. | 17 |
Azimuth | 30 |
Depth | 21.0 |
Depth 1 | >11.0 |
Depth 2 | 20.8 |
Depth 3 | >11.0 |

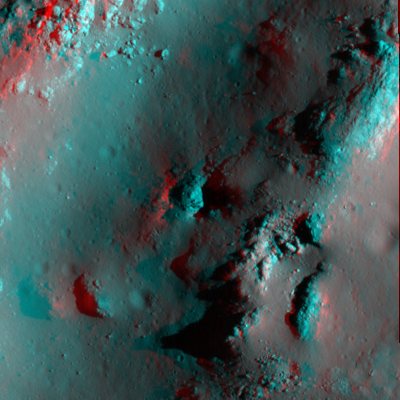

Best Stereo Left | M176359843L |
Best Stereo Right | M176359843L |
DTMs | |
Clipping Width | 200 |
Other IMGs | |
Data Warning | All measurements are from the W rim. Only Depth 2 is clearly to the floor, but at extremely high Sun (11 degrees) (measure point is at south end of E wall, same place as other depths. Alternate measure at north end is 10m deep) |
Entrance Ramp | N |
Overhang | ? |
Nearby Pits? | N |
Nearby Fractures? | N |
Nearby Depressions? | N? |
In Dome | Y |
Beside Dome | N |
In Depression | Y |
Colinear Pits | N |
Colinear Depressions | N |
Colinear Fractures | N |
