Pits Atlas: Das 4d
Impact Melt pit: Das | |
---|---|
Name | Das 4d |
Lat. | -26.4189 |
Long. | 222.7907 |
Desc. | Southernmost of the Das 4 cluster of ~5 pits. N wall seems to be a slope downward to the S wall, and is continuous with a ~30-m-wide depression to the N. W wall is in the side of a small PRF. |
Types | |
Terrain | Impact Melt |

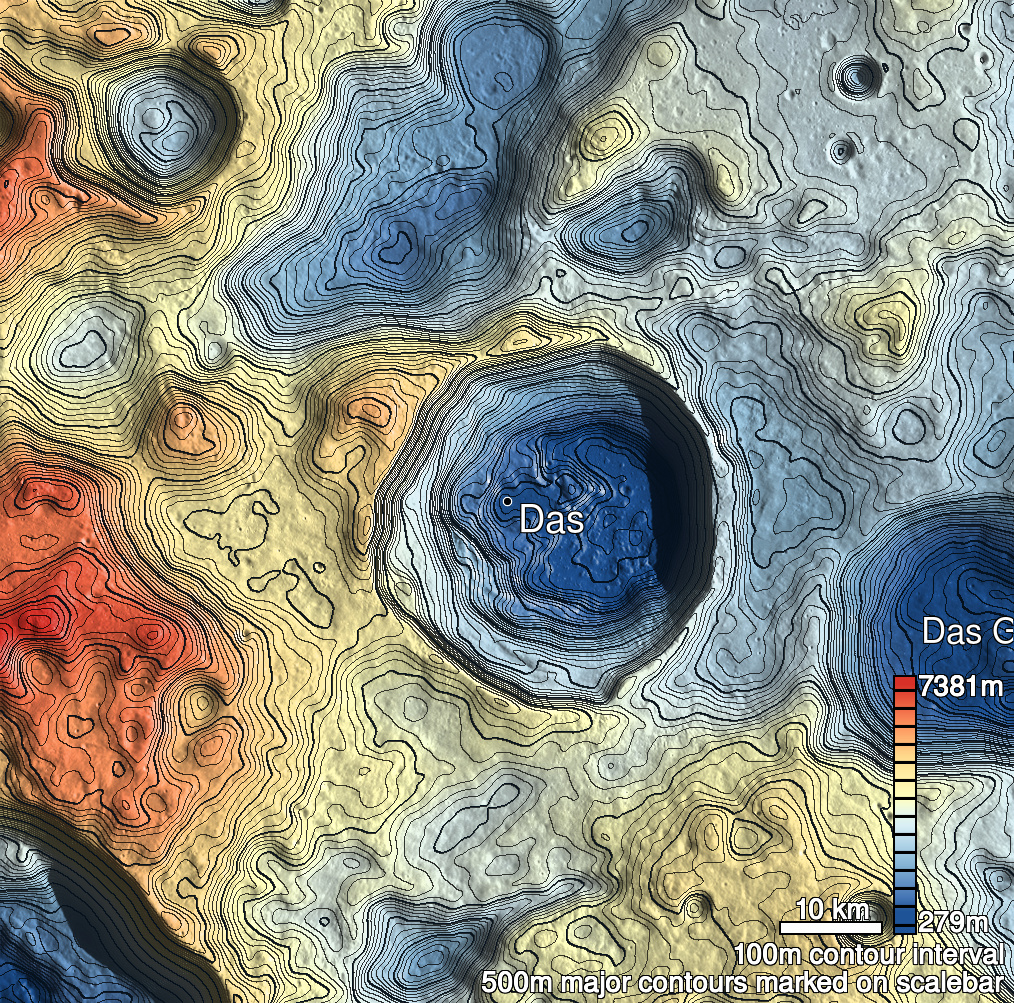

Host Feature | Das |
Funnel Min. Diam. | 12 |
Funnel Max. Diam. | 18 |
Inner Min. Diam. | 6 |
Inner Max. Diam. | 9 |
Azimuth | 130 |
Depth | >6.0 |
Depth 1 | >7.0 |
Depth 2 | 4.8 |
Depth 3 | >4.0 |
Best Stereo Left | M1198681331R |
Best Stereo Right | M1198681331R |
DTMs | |
Clipping Width | 200 |
Other IMGs | |
Data Warning | Depth 1 is from top of funnel. Funnel measure does not include the shallow depression to the NE. Depth 2 is from rim to N slope; down-sun side of N wall slope also casts a shadow. |
Entrance Ramp | Y |
Overhang | ? |
Nearby Pits? | Y |
Nearby Fractures? | N |
Nearby Depressions? | Y |
In Dome | N |
Beside Dome | Y |
In Depression | Y |
Colinear Pits | Y |
Colinear Depressions | N |
Colinear Fractures | N |
