IM-1 Landing Region

IM-1 Landing area 1.7 m pixel scale
IM-1 landing region, the map is 1870 meters wide; north and nearside are towards the top, 1.70 meters per pixel. NAC M1435274280LR [NASA/GSFC/Arizona State University].


The Intuitive Machines IM-1 Nova-C lander is scheduled to launch toward the Moon no earlier than 13 February 2024. The IM-1 landing will occur about one week after the launch.

IM-1 Landing area 85 cm pixel scale

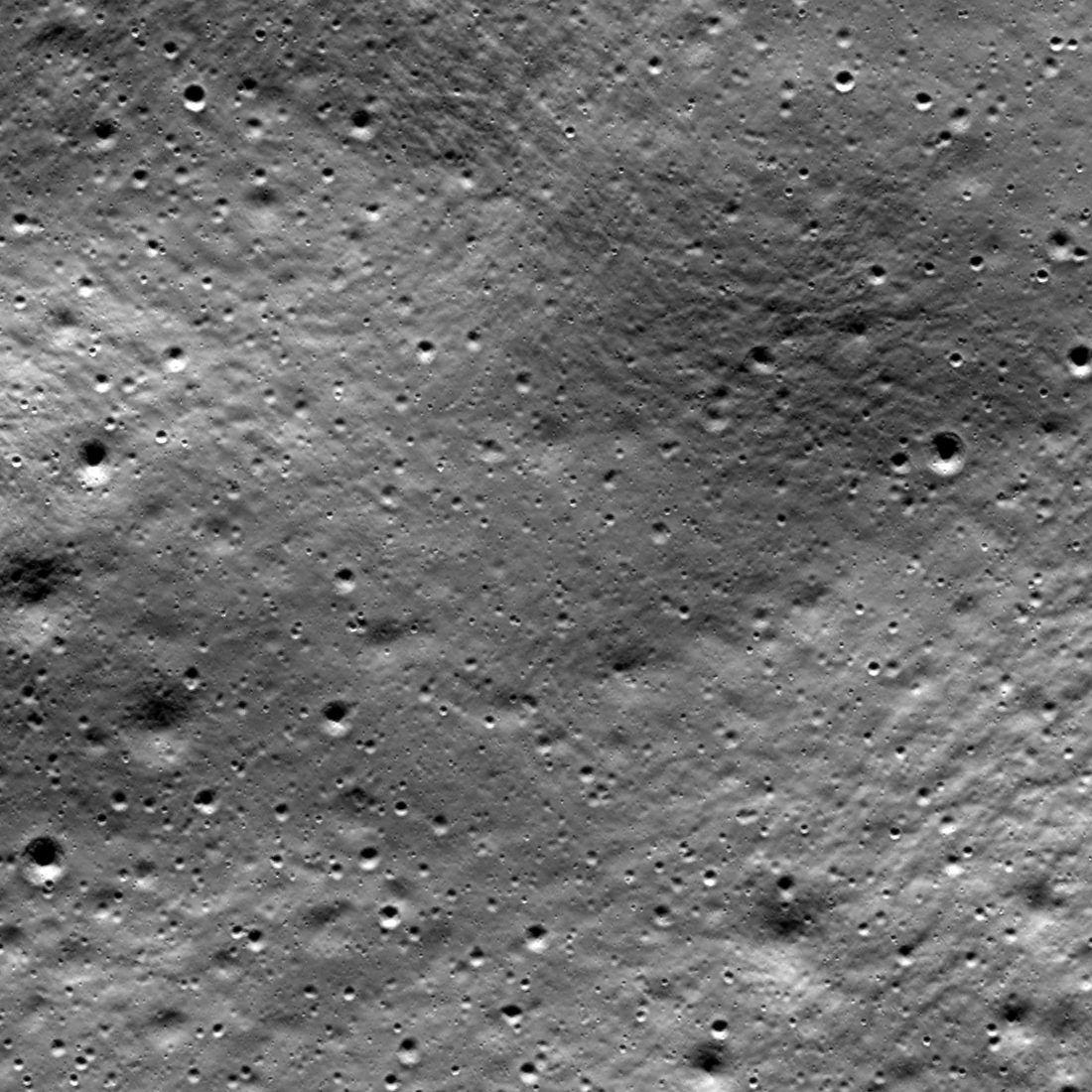

High-resolution mosaic (85 cm pixel scale) centered on the nominal landing area (80.2°S, 1.0°E). The map is 935 meters wide; north and nearside are towards the top, LROC NAC M1435274280LR [NASA/GSFC/Arizona State University].

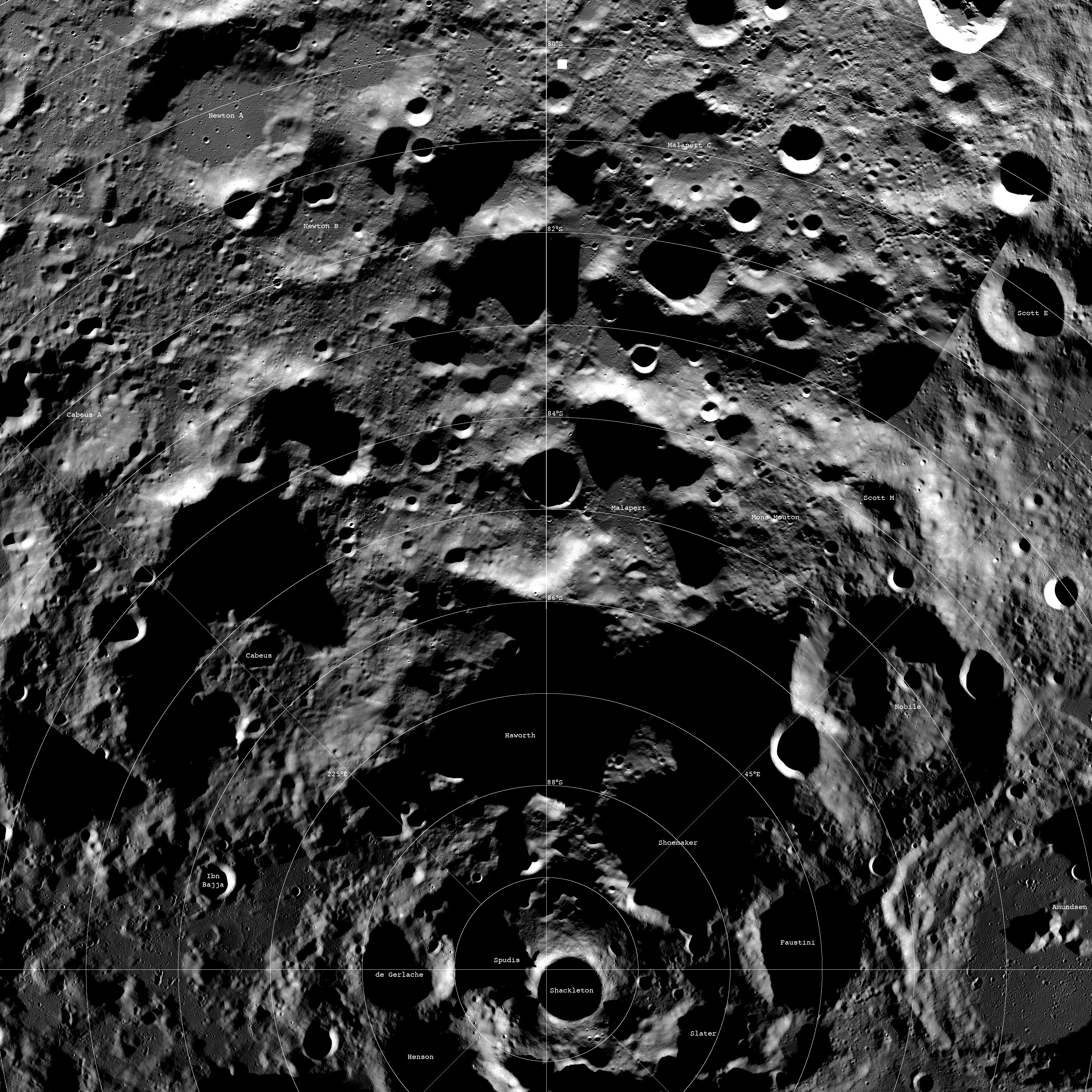

A full resolution Wide Angle Camera context map showing the IM-1 landing area is available at this link. The white square (center top) indicates the location of the NAC map (seen above and below)  [NASA/GSFC/Arizona State University].

The landing area is within 300 kilometers of the south pole, between the craters Malapert C and Malapert B and east of Malapert A, in relatively ancient terrain within the South Pole Aitken basin.

Oblique image showing the IM-1 landing area, acquired from an altitude of 78 kilometers with a slew angle of 64° on 2023-04-02. North is to the right, 57 kilometers wide at the center, LROC NAC M1435077792LR [NASA/GSFC/Arizona State University].


Related Featured Images

On the Way to Shioli Crater

Chandrayaan 3 Landing Site

First Look: Chang'e 5

Published by Mark Robinson on 19 January 2024
