How Young is Young?

LROC North Ray Crater
Area on the southeastern rim of North Ray crater, explored by Apollo 16 astronauts John Young and Charlie Duke, revealed in the new low altitude LROC image M175179080LR. Image is 300 meters wide, black arrows show foot tracks [NASA/GSFC/Arizona State University].

One of the main goals of the Apollo 16 mission was to explore and sample a young bright rayed crater aptly named North Ray crater (890 m diameter). Its high albedo is due to its young age. During an impact event geologic material from depth is excavated and spread around a crater. The deepest material ends up near the rim, and the shallower material is thrown out farther. The pre-existing surface was mature, meaning that its albedo was diminished over time due to solar wind and micrometeorite bombardment (space weathering). The fresh material from depth had not suffered these effects, thus its high albedo. If you wait, you can observe the North Ray crater's albedo decrease over time - but you would have to be very patient, since this space weathering process takes hundreds of millions of years to complete. At the time of the Apollo 16 mission scientists did not know the age of North Ray crater, nor did they know as much as we know today about the details of the space weathering process, so an important goal was to learn what young really means on the Moon.

LROC Apollo 16 Traverse Map

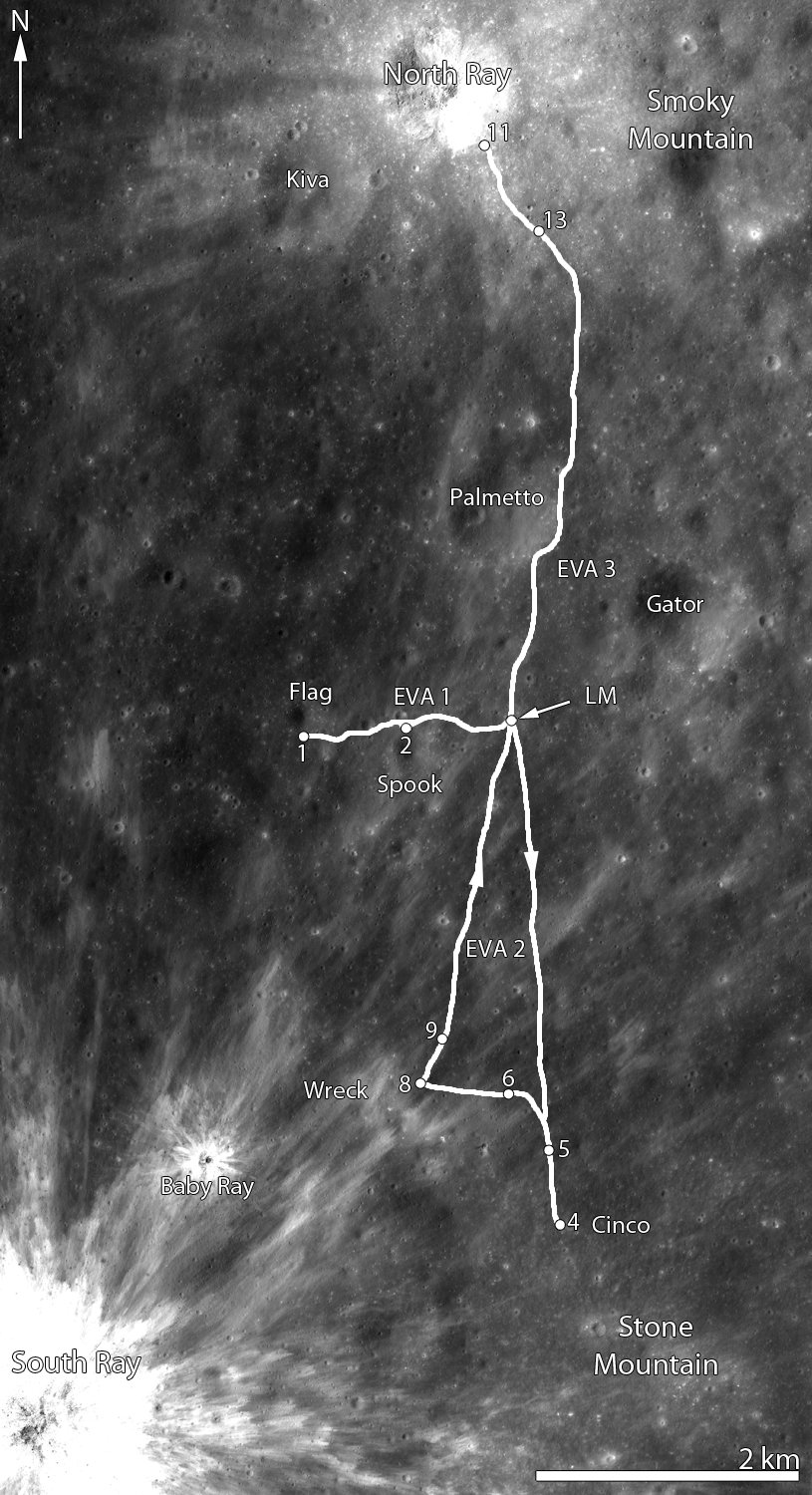

Apollo 16 Traverse Map overlain on subsampled NAC M106777343L/R.

North Ray crater, which is almost 250 m deep, was the largest and deepest crater visited during the Apollo 16 mission, and its rim was the stop known as Station 11, visited on the third and final EVA. Because the rim sloped off gradually into the crater, and the crater was so deep (relative to its diameter), the astronauts could not actually see the bottom of the crater while standing on its rim. It was hoped by pre-mission planners that the astronauts would look into the crater and see discrete layers of highlands volcanic rocks. When John Young and Charlie Duke actually got to North Ray, the astronauts saw no evidence for lava layering in its walls. Rather, the samples they collected from the rim were almost all impact breccias, or rocks formed from the pieces of other rocks during a much larger impact event. Since the crater is so deep, it excavated long-buried lithologies, so sampling North Ray rim materials provided important information about the geology of the Apollo 16 site. The samples from the rim of North Ray almost certainly included material from the Descartes formation, one of two major geologic units at the Apollo 16 landing site.

John Young geologizing on the rim of North Ray crater. Their next destination will be House Rock, seen behind Young, above his right shoulder, AS16-106-17336 [NASA].


A particularly important sampling location on the rim of North Ray crater was dubbed “House Rock”, so-named because it appeared to be the size of a house to the astronauts. As it turns out this house sized rock is actually 24 meters by 20 meters (79 by 65 feet)! A smaller rock (9 meters or 30 feet) directly to the south was dubbed “Outhouse Rock”, and several samples were collected at this location. Watch Young and Duke approach House Rock.

The samples collected on the rim of North Ray crater, including those from House Rock, represent our best look at the lunar highlands and the awesome process of basin ejecta emplacement. The breccias that were sampled by Young and Duke were all formed as massive flows of rock that traveled across the Moon's surface as result of the formation of the Imbrium basin and the Nectaris basin. The formation of North Ray crater brought breccias up from depths greater than 200 meters, allowing Young and Duke to sample a three-dimensional section of the local stratigraphy.

From these samples we now know that the region is not formed of unusual lavas, but rather basin ejecta. Now believed to represent materials that were excavated from near the bottom of North Ray crater, both of these rocks originally formed as part of giant impact breccias. Age-dating these samples back on Earth revealed that the materials that comprise House and Outhouse rocks formed about 3.9 billion years ago, although the North Ray impact that excavated House Rock itself occurred only about 50 million years ago. So we now know the age of formation of the massive ejecta flows, and we have an answer to how young is young: the age of the youthful North Ray crater is an important point on our absolute age scale of lunar events.

Charlie Duke sampling House Rock, AS16-116-18649 [NASA].


Geologists mapped out two major units in the area: the Cayley formation, which lies on top of the Descartes formation (remember what lies on top is younger). Tentatively, the Cayley formation is interpreted to have formed as ejecta from the Imbrium basin, while the Descartes formation is thought to represent ejecta from the older Nectaris basin. Since rim samples of North Ray crater likely came from the bottom of the crater, scientists believe they represent the stratigraphically lower Descartes formation (Nectaris ejecta). In general, the age-dating of the breccias collected on the rim of North Ray crater is currently considered to provide the best available estimate for the formation age of Nectaris basin (estimates range from 3.85 to 3.92 billion years ago), an important anchor for lunar stratigraphy.

North Ray Crater Topography

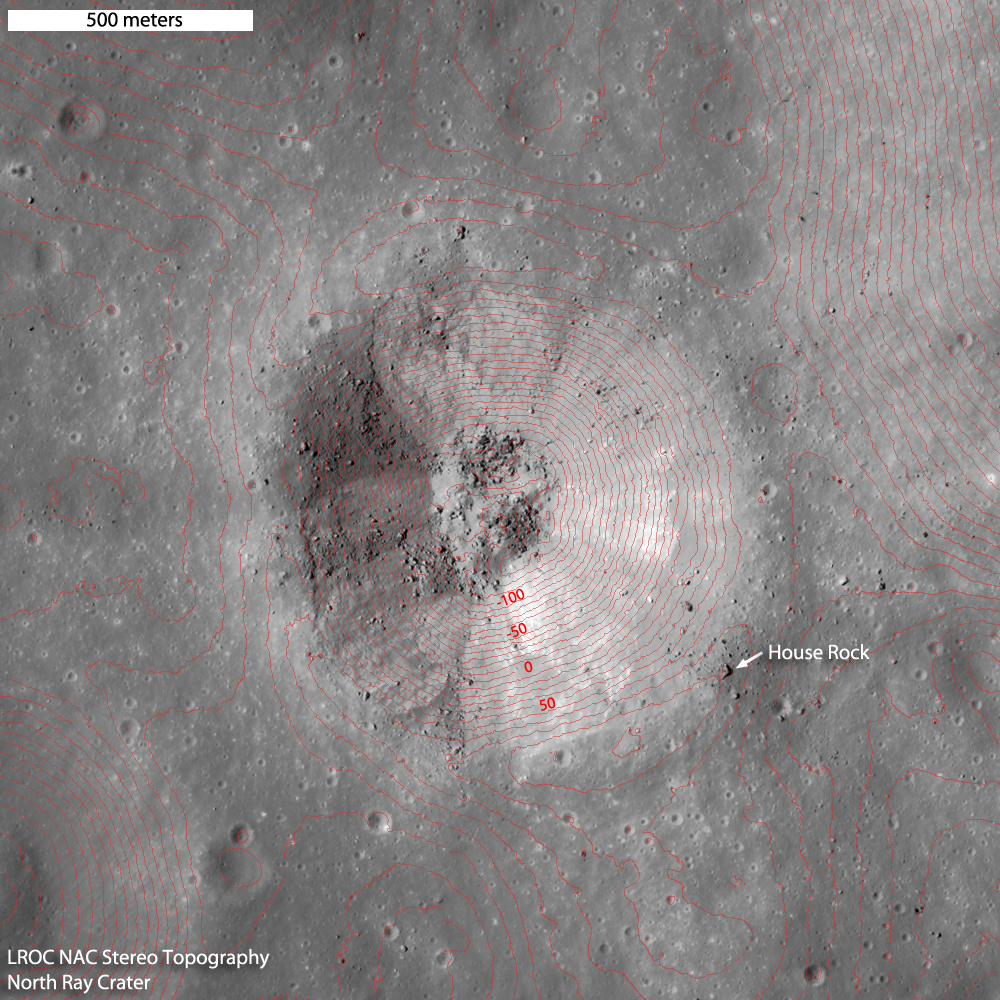

LROC NAC stereo derived topography of North Ray crater [NASA/GSFC/Arizona State University].

Up to two times a day the LROC NAC obtains stereo pairs of key science targets, including the Apollo 16 site. The stereo images provide the means to make detailed topographic maps, a powerful tool for unraveling the local geology and planning future missions to the Moon (robotic and crewed). If Young and Duke had the above LROC topographic map, they might have planned a traverse part way into the crater, or perhaps all the way to the bottom!

Inspect the whole of North Ray crater at 25 centimeter pixel scale! Note the faint and bright rover tracks indicated with small white arrows, small black arrows point to astronaut tracks.

Previous Low Altitude LROC Image Releases:

Apollo 11

Apollo 12

Apollo 14

Apollo 15

Apollo 17

And just for fun: perspectives of North Ray crater made with NAC images and NAC topography at one-to-one vertical to horizontal scale (natural perspective). See if you can spot House Rock by comparing to the full resolution image map. Enjoy!

North Ray Crater Perspective N2S

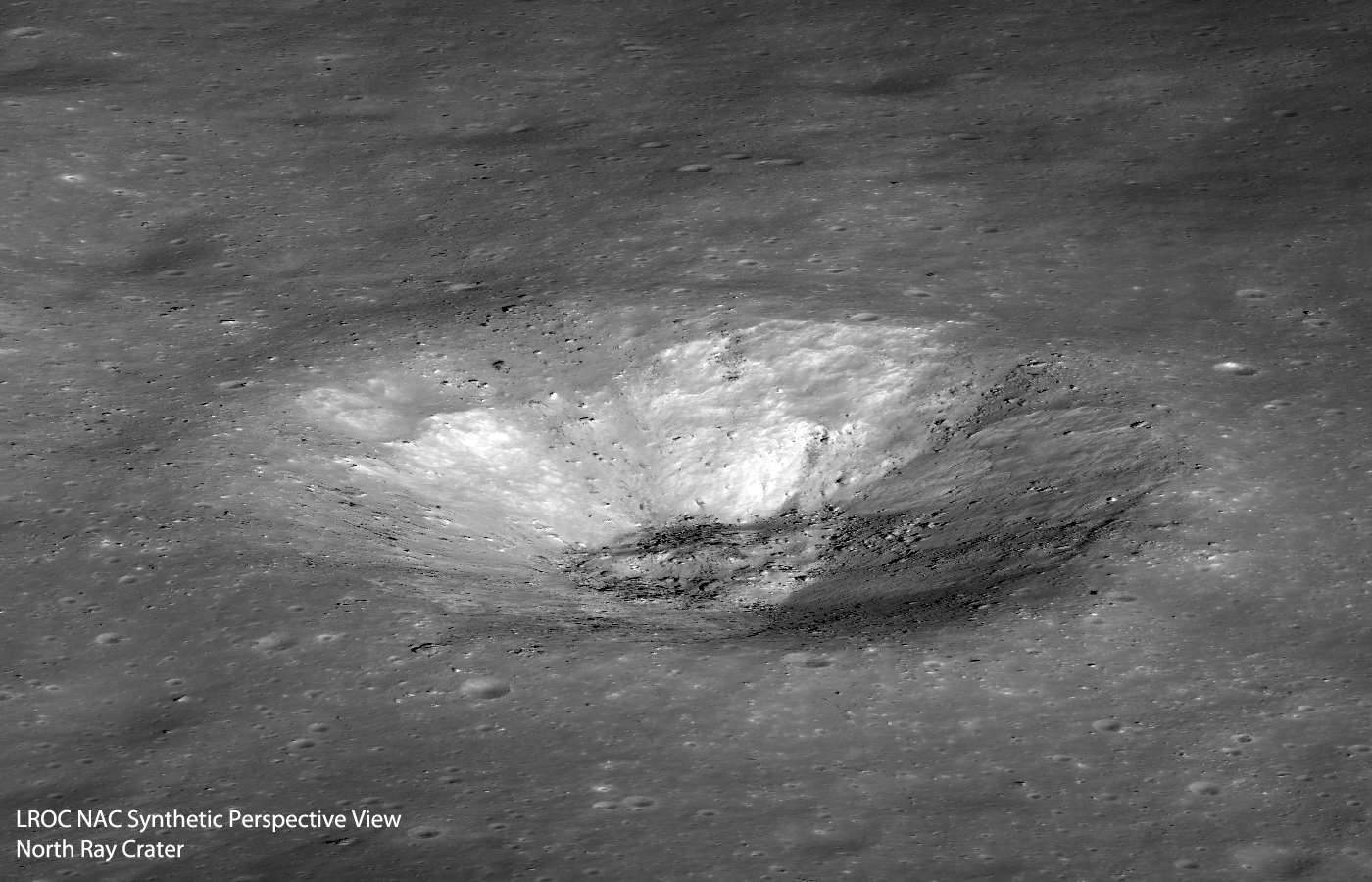

North to south perspective across North Ray crater [NASA/GSFC/Arizona State University].
North Ray Perspective S2N

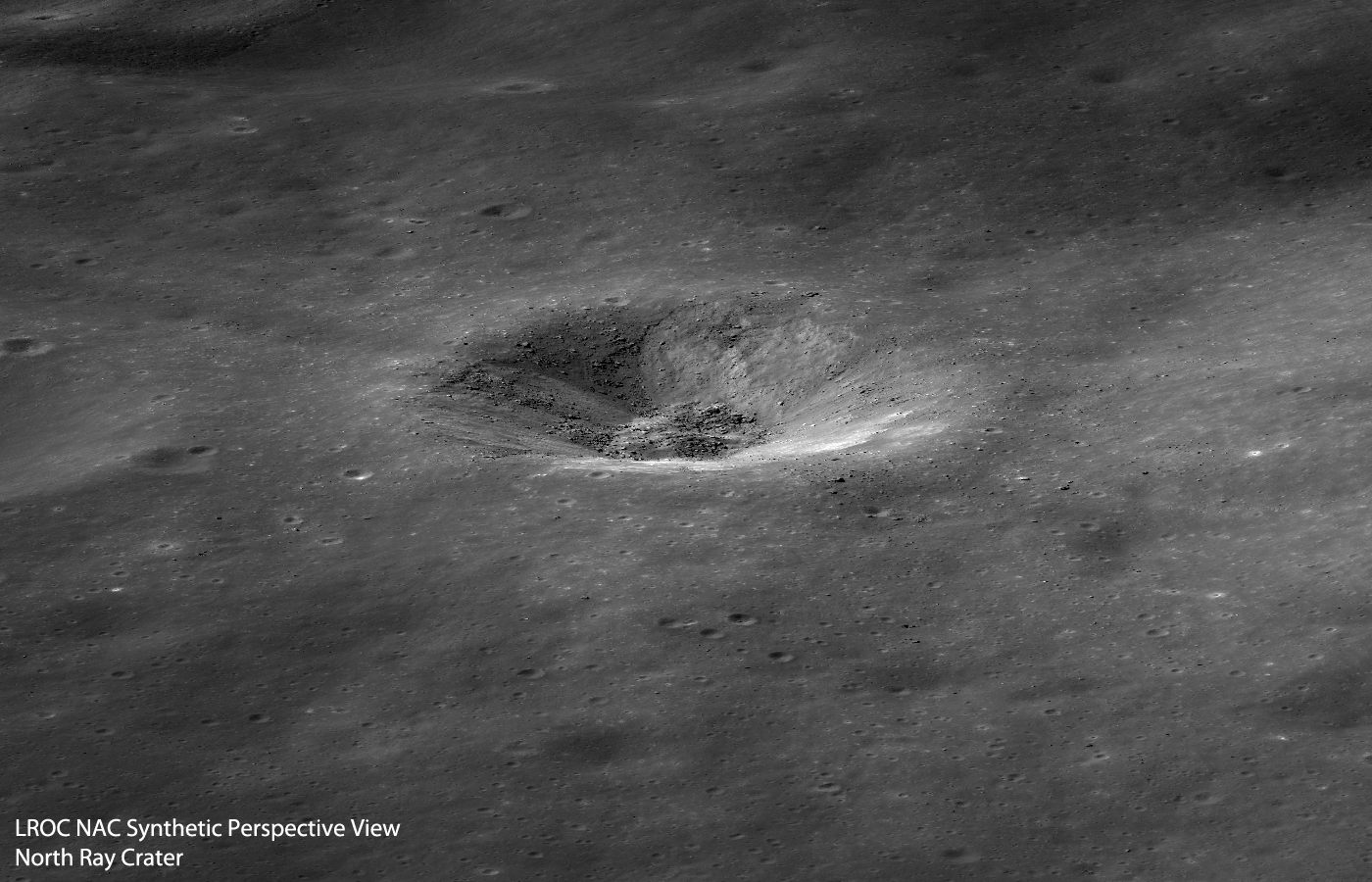

South to north perspective view of North Ray crater from close range [NASA/GSFC/Arizona State University].
North Ray Perspective S2N Far

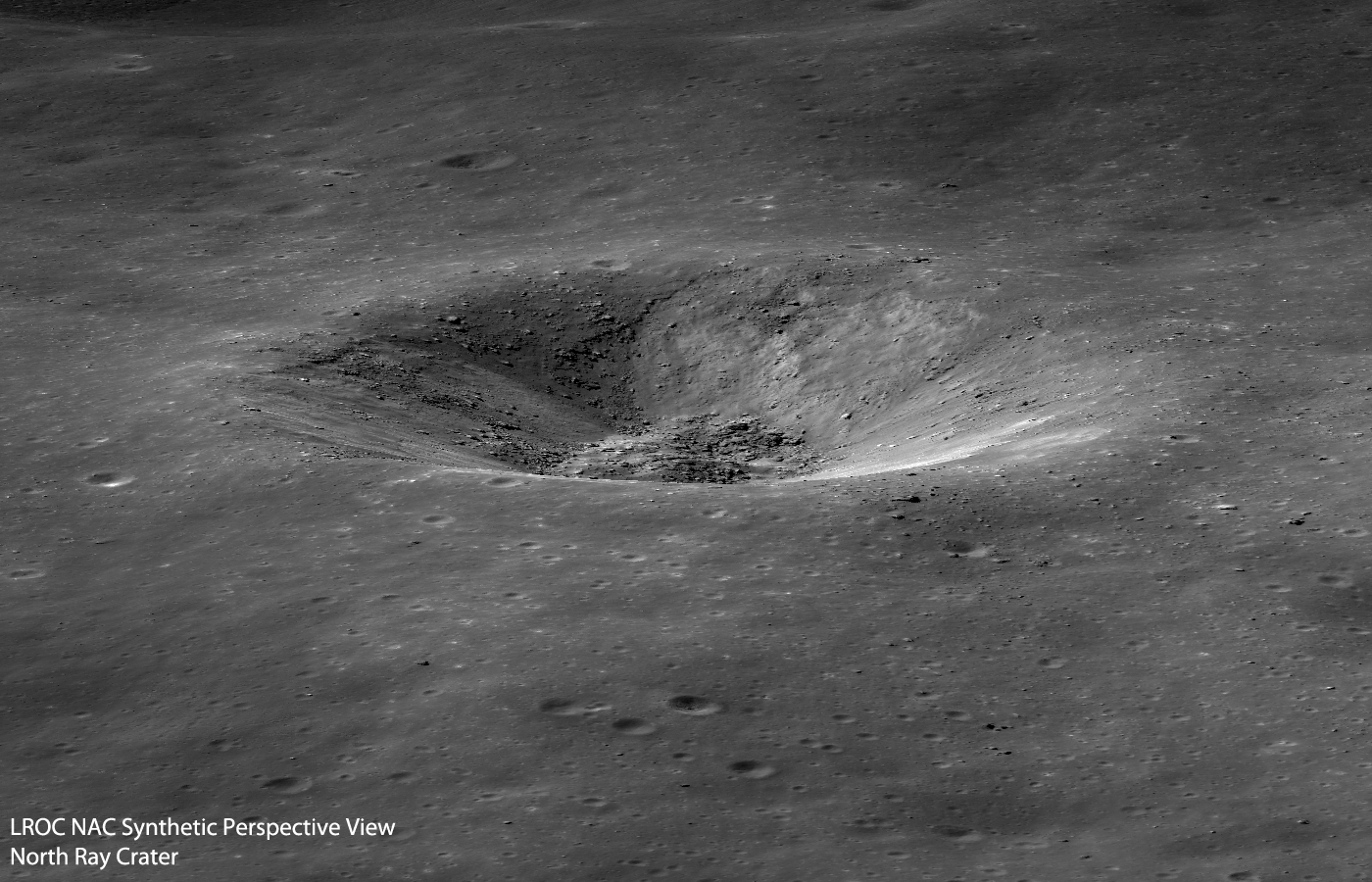

South to north perspective view of North Ray crater from far range [NASA/GSFC/Arizona State University].




Published by Mark Robinson on 8 March 2012
