Tycho: A Model Central Peak

Color coded topography map of Tycho central peak
Color-shaded relief map showing elevations for the central peak of Tycho crater. Black areas indicate shadows in the stereo images, where no topography could be extracted [NASA/GSFC/Arizona State University].


Recently, LROC released a DTM mosaic of the central peak of Tycho crater!  This peak, which rises ~2.5 km above the crater floor and is ~8 km across, formed when the meteor that created Tycho impacted the Moon around 85 million years ago.  As a relatively young and prominent feature, it is of great interest to geomorphologists working to understand lunar processes.  Because of this, it is a great candidate for a DTM mosaic!

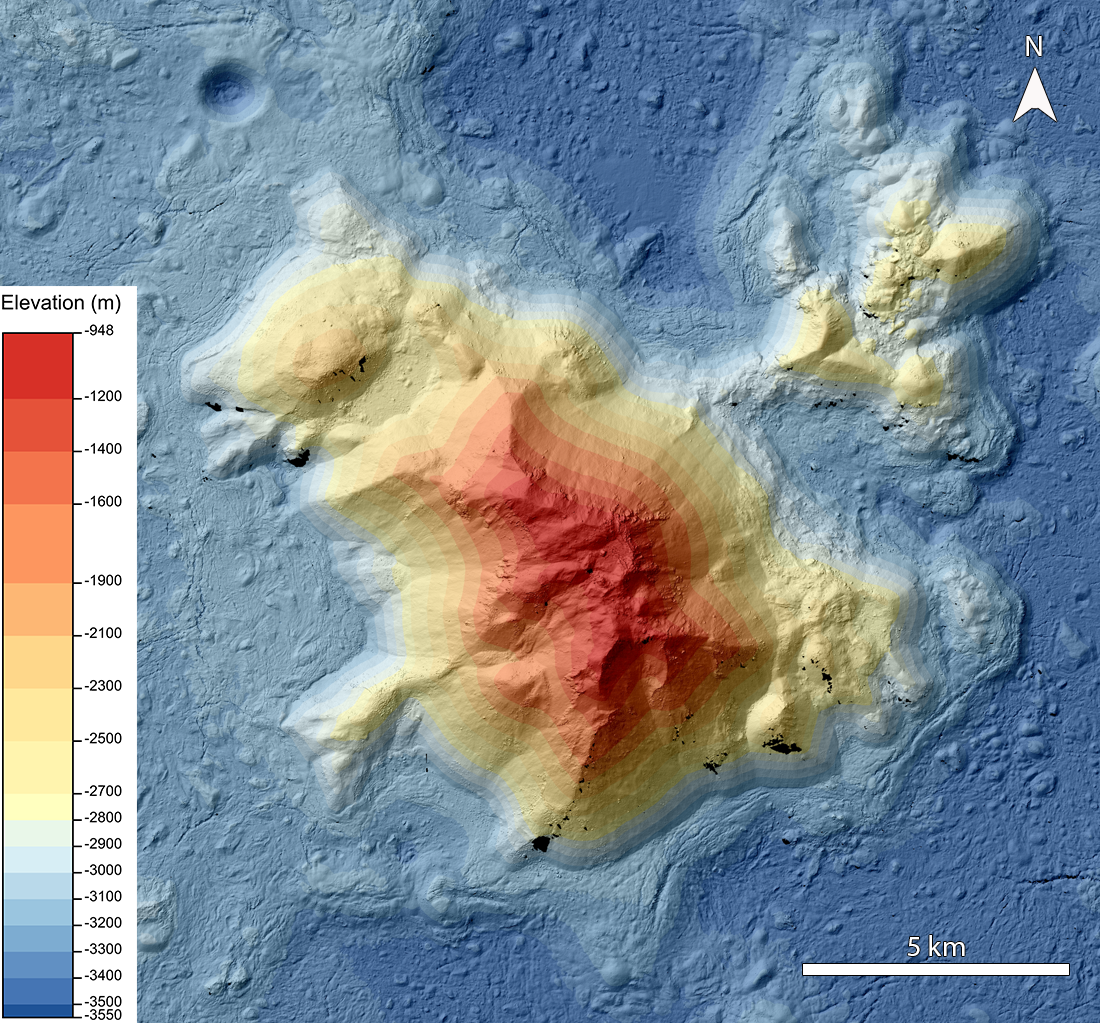

Color coded topography map of Tycho cetral peak (with color legend)
Color-shaded relief map showing elevations for the central peak of Tycho crater from a new 2 m/pixel digital terrain model (DTM) mosaic created by the LROC team. Black areas indicate shadows in the images, where no topography could be extracted [NASA/GSFC/Arizona State University].

What are DTMs?  DTMs, or digital terrain models, show the surface elevation of the Moon by using stereo pairs: images of the same area taken at slightly different angles.  This difference in angle, known as parallax, allows us to calculate the elevation of features - this same phenomenon gives humans depth perception.  Knowing the elevation of landforms allows scientists to determine how the surface of the Moon changes and what processes are causing that change.

We usually create a single LROC DTM using four Narrow Angle Camera (NAC) images. Because we take images in left-right pairs, the four images form one set of stereo pairs.  However, as with the Tycho central peak, sometimes an area of interest is larger than this, or scientists are interested in the broader regional context around the geologic feature of interest.  In these cases, we can create a DTM mosaic of several stereo sets (see figure below).

There are a few challenges to creating DTM mosaics.  For very steep areas of the Moon, like Tycho central peak, parts of the terrain will often be in shadow.  Because we cannot calculate elevation data for areas in shadow, we must take images at variable sun angles for a full-coverage mosaic.  Capturing these images can be complicated, however, because the length of a day on the Moon is long, and lighting conditions change very slowly.  With limited opportunities to slew the instrument, capturing stereo images of the same feature under different lighting can take a long time.  In addition, all stereo pairs must be tied together to ensure the DTM is topographically consistent with no visible seams.  Tying pairs together becomes more complicated as more images are incorporated into the mosaic and are even more difficult when the added stereo pairs have been taken under different lighting conditions.  However, once we have addressed these factors, we can create a DTM mosaic covering a large area!

In the case of this mosaic, the central peak of Tycho is larger than the area covered by the standard four-image setup.  We created the mosaic (available here) out of eight sets of stereo (32 images in total), which amply cover the peak and the surrounding crater floor.

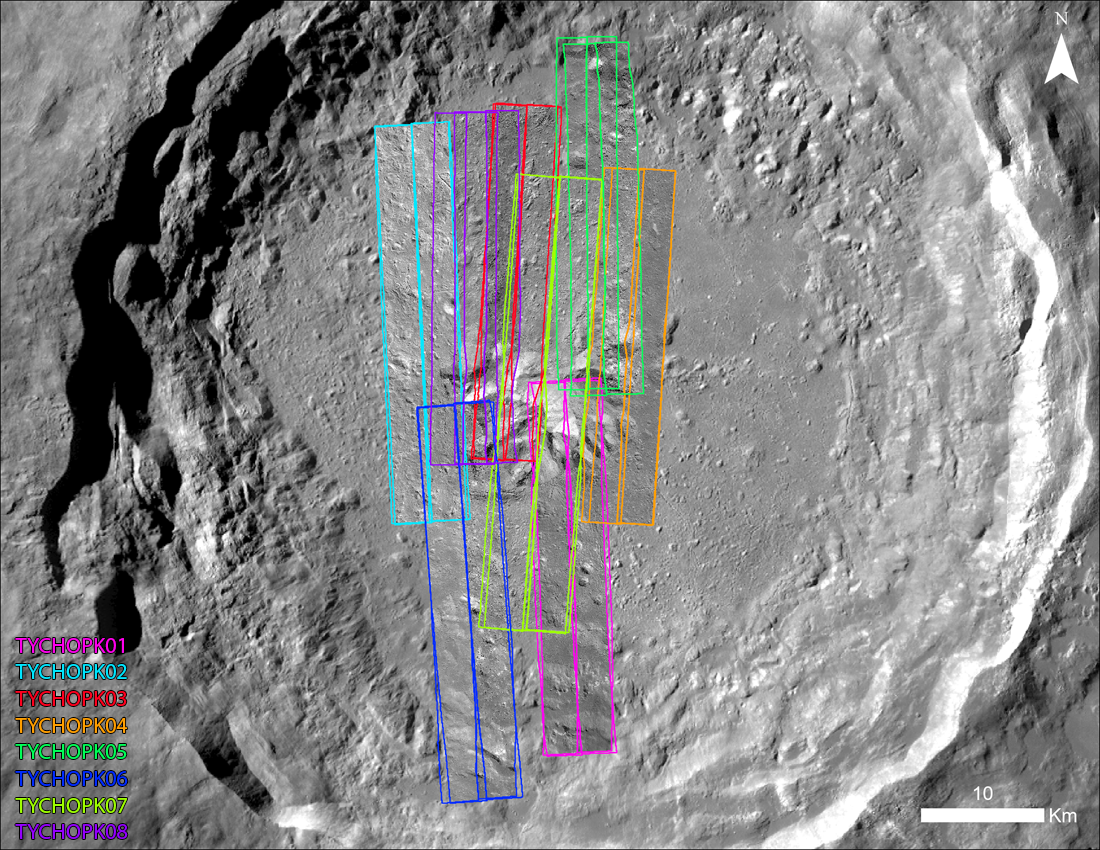

The Tycho Peak DTM mosaic is pieced together from eight individual DTMs, made from 32 NAC images. In order to fully cover the central peak, multiple sets of stereo images were required. In some very steep areas, where dark shadows are difficult to avoid, multiple stereo pairs were required at different lighting angles [NASA/GSFC/Arizona State University].

 Explore Tycho’s central peak in the Zoomify window below!
