Pits Atlas: Harriot 1
Impact Melt pit: Harriot | |
---|---|
Name | Harriot 1 |
Lat. | 33.2933 |
Long. | 114.2911 |

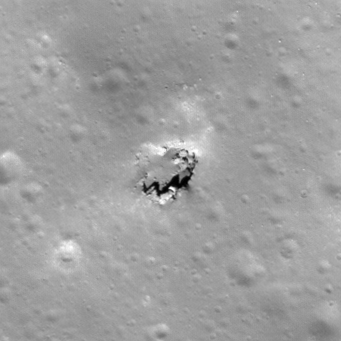

Desc. | A wide, shallow pit, roughly square. The west wall is a smooth slope to the floor, and there seems to be a boulder pile in the NE corner that reaches the rim. No nearby collapses. |
Types | |
Terrain | Impact Melt |

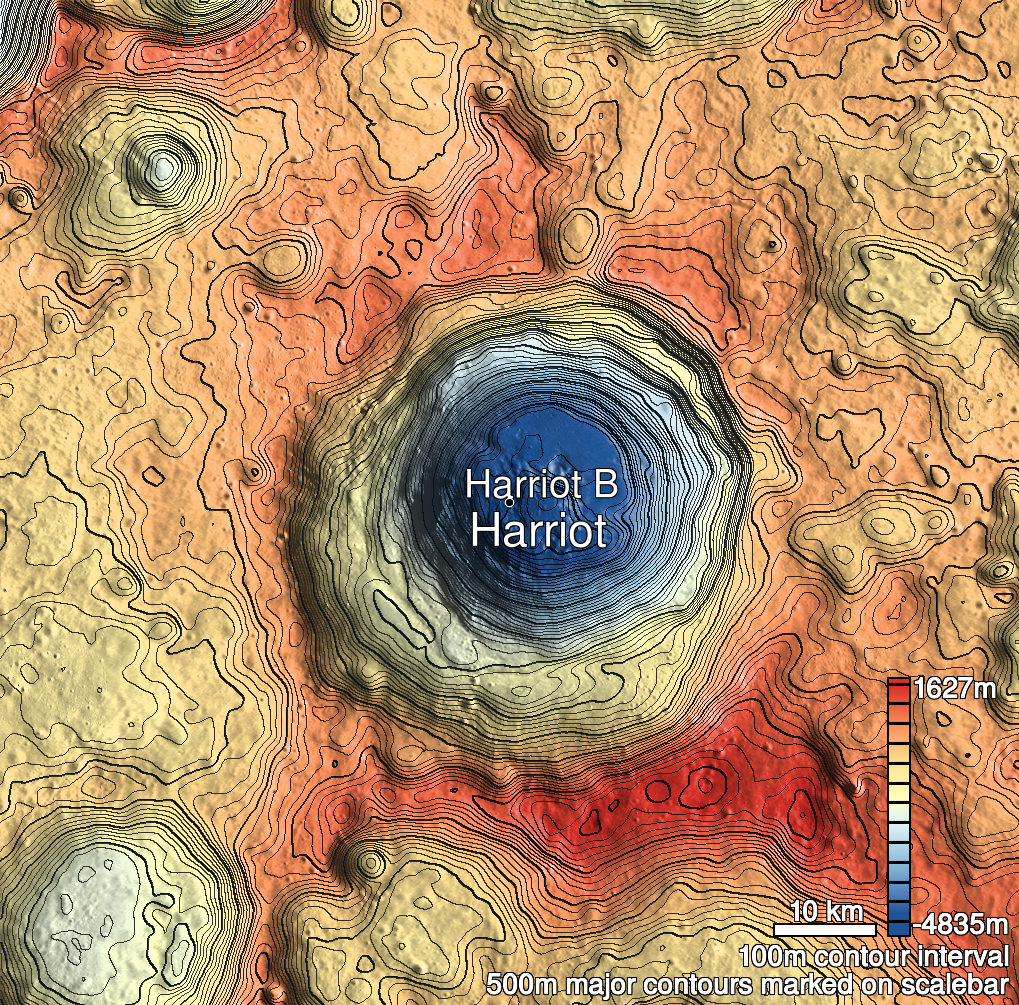

Host Feature | Harriot |
Funnel Min. Diam. | 34 |
Funnel Max. Diam. | 41 |
Inner Min. Diam. | 25 |
Inner Max. Diam. | 27 |
Azimuth | 50 |
Depth | 9.0 |
Depth 1 | 12.1 |
Depth 2 | 10.0 |
Depth 3 | 4.5 |
Best Stereo Left | M1227613833L |
Best Stereo Right | M1227613833L |
DTMs | |
Clipping Width | 200 |
Other IMGs | |
Data Warning | Depth 3 is from top of funnel to west slope near what I thought was the floor, and very close to Depth 2. |
Entrance Ramp | Y |
Overhang | ? |
Nearby Pits? | N |
Nearby Fractures? | N |
Nearby Depressions? | N |
In Dome | N |
Beside Dome | N |
In Depression | N |
Colinear Pits | N |
Colinear Depressions | N |
Colinear Fractures | N |
