Pits Atlas: Kepler 2
| Impact Melt pit: Kepler | |
|---|---|
| Name | Kepler 2 |
| Lat. | 8.2724 |
| Long. | 322.0248 |
| Desc. | A roundish pit, very much in the Tranquillitatis style. Fairly pronounced funnel. There's a large open fracture ~250m to the NE, and an arc of tiny fractures running from SW to E, approaching to within 75m due south. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Kepler |
| Funnel Min. Diam. | 11 |
| Funnel Max. Diam. | 14 |
| Inner Min. Diam. | 5 |
| Inner Max. Diam. | 6 |
| Azimuth | 30 |
| Depth | 9.0 |
| Depth 1 | 3.9 |
| Depth 2 | 6.5 |
| Depth 3 | 15.3 |
| Best Stereo Left | M166100555L |
| Best Stereo Right | M166100555L |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | Depth 3 is extremely high sun (10 degree incidence), so the 2 degree emission angle may be significant. Also, resolution is low. |
| Entrance Ramp | N |
| Overhang | ? |
| Nearby Pits? | Y |
| Nearby Fractures? | Y |
| Nearby Depressions? | Y |
| In Dome | N |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

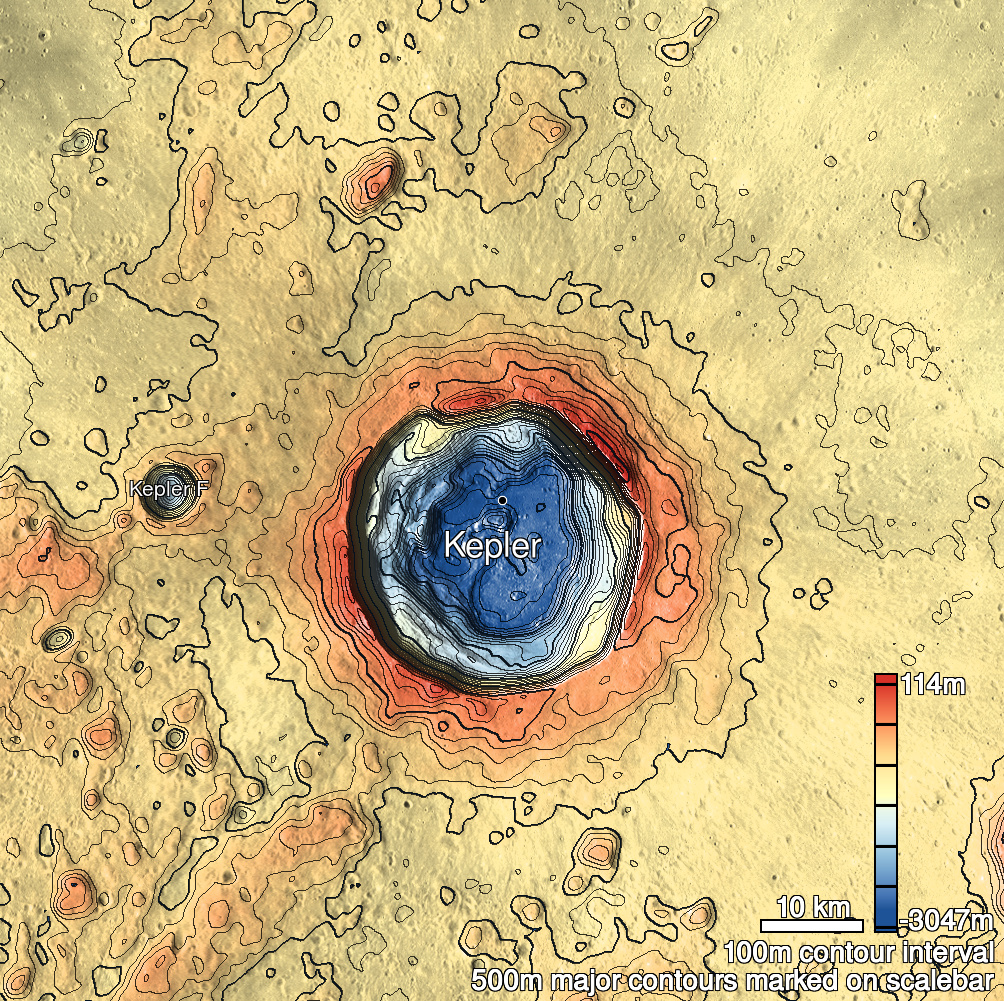

| Kepler 2 Shaded Relief | |
|---|---|
 |
| M111843702R | |
|---|---|
 |
|
| Line | 13487 |
| Sample | 2525 |
| Inc. Angle | 32.67 |
| Emission Angle | 1.16 |
| Time | 9.92 |
| Resolution | 0.49 |
| M188493098L | |
|---|---|
 |
|
| Inc. Angle | 21.05 |
| Emission Angle | -0.92 |
| Time | 10.67 |
| Resolution | 1.23 |
| M186134194L | |
|---|---|
 |
|
| Inc. Angle | -9.99 |
| Emission Angle | 2.21 |
| Time | 12.49 |
| Resolution | 1.24 |
| Kepler 2 Stereo |
|---|
 |
