Pits Atlas: King 22
Impact Melt pit: King | |
---|---|
Name | King 22 |
Lat. | 6.4835 |
Long. | 119.9941 |
Desc. | Teardrop-shaped pit between two sets of fractures/fracture-associated pits (~40m N and ~180m S). There are two small (~5m) depressions running W from the W end of this pit to the S corner of a triangular fracture-associated pit in the northern fracture, hinting at a connection. The floor is mostly flat, apparently sloping up in the western third, but does not quite reach the rim. No obvious PRFs, but there may be an extremely subtle (~3m high, ~50m wide) rise immediately to the E. King 40 is ~180m SE. |
Types | |
Terrain | Impact Melt |
Host Feature | King |
Funnel Min. Diam. | 24 |
Funnel Max. Diam. | 34 |
Inner Min. Diam. | 18 |
Inner Max. Diam. | 25 |
Azimuth | 110 |
Depth | 5.0 |
Depth 1 | 6.6 |
Depth 2 | 3.5 |
Depth 3 | 6.0 |
Best Stereo Left | M128509025R |
Best Stereo Right | M128509025R |

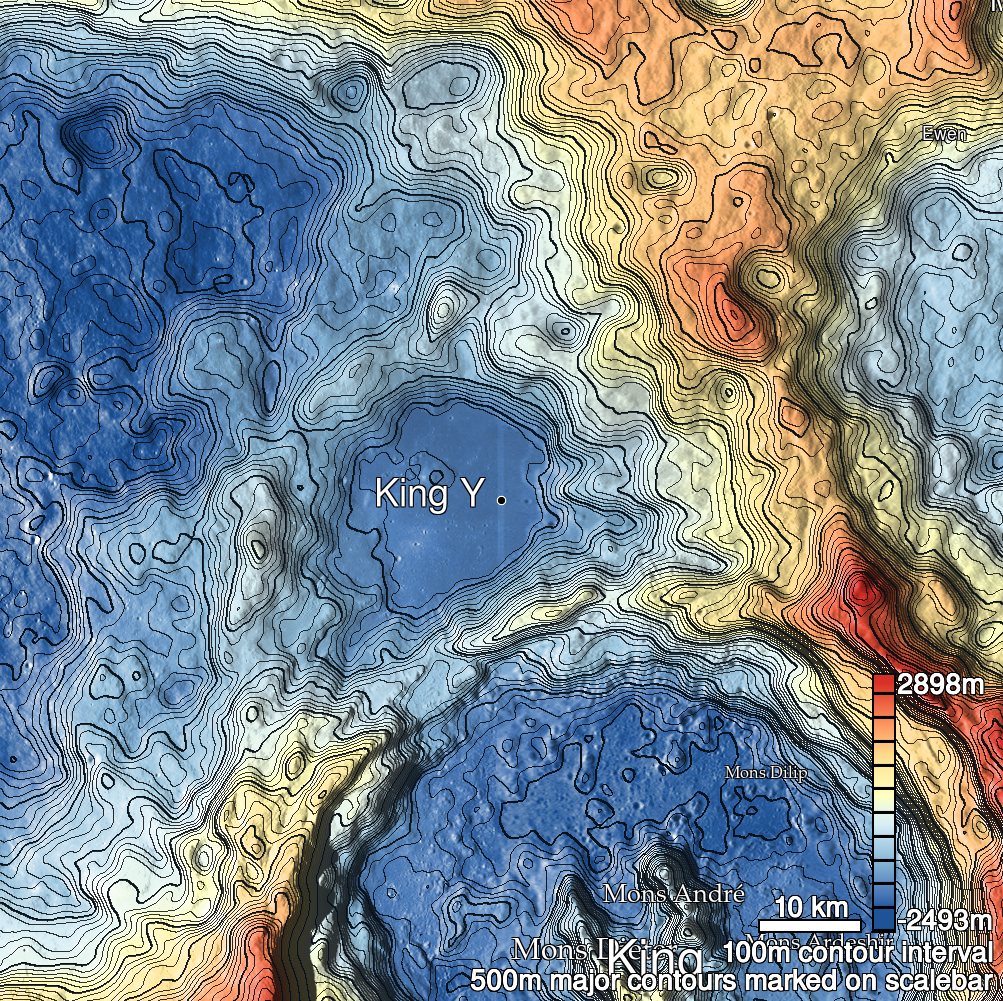

DTMs | NAC_DTM_KINGCRATER2 |
Clipping Width | 200 |
Other IMGs | M182745931R |
Data Warning | Depth 2 is from lower E rim. |
Entrance Ramp | Y |
Overhang | ? |
Nearby Pits? | Y |
Nearby Fractures? | Y |
Nearby Depressions? | Y |
In Dome | Y? |
Beside Dome | Y? |
In Depression | N |
Colinear Pits | N |
Colinear Depressions | N |
Colinear Fractures | N |
