Pits Atlas: Highland 2
| Highland pit: Highland | |
|---|---|
| Name | Highland 2 |
| Lat. | 41.1563 |
| Long. | 18.8206 |
| Desc. | Elliptical pit with a bowl-shaped or sloped N-to-S floor. Probably has a vertical wall; assuming that is the case, the funnel is ~6 m deep. Nearby terrain is very hilly. |
| Types | |
| Terrain | Highland |
| Host Feature | Highland |
| Funnel Min. Diam. | 39 |
| Funnel Max. Diam. | 42 |
| Inner Min. Diam. | 27 |
| Inner Max. Diam. | 34 |
| Azimuth | 175 |
| Depth | >24.0 |
| Depth 1 | >24.0 |
| Depth 2 | >24.0 |
| Depth 3 | >20.0 |
| Best Stereo Left | |
| Best Stereo Right | |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | Not clear if inner pit actually exists, long axis is from possible wall to top of funnel. All depths are from top of funnel to points probably above the lowest point on the floor. |
| Entrance Ramp | N |
| Overhang | N? |
| Nearby Pits? | N |
| Nearby Fractures? | N |
| Nearby Depressions? | N? |
| In Dome | N |
| Beside Dome | Y? |
| In Depression | N? |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

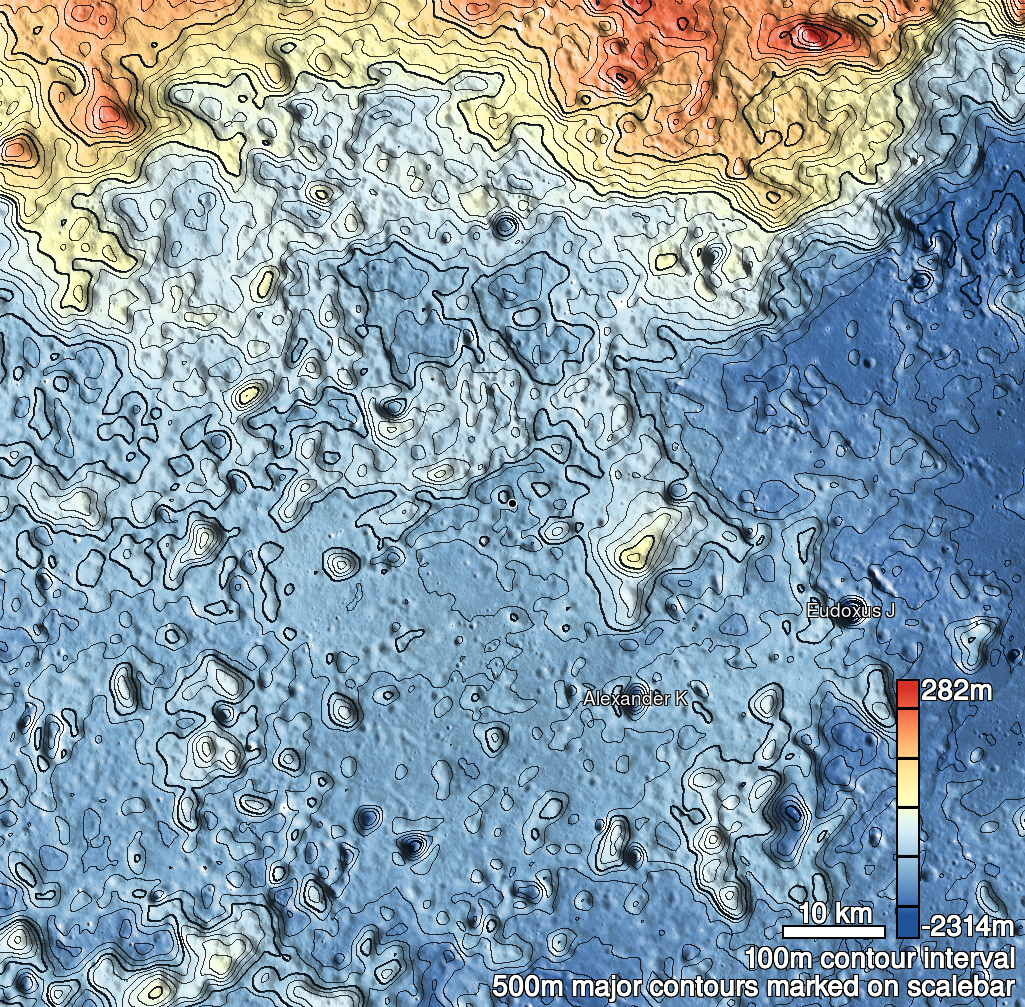

| Highland 2 Shaded Relief | |
|---|---|
 |
| M1241199272R | |
|---|---|
 |
|
| Line | 10225 |
| Sample | 2945 |
| Inc. Angle | 43.25 |
| Emission Angle | 1.46 |
| Time | 10.94 |
| Resolution | 1.24 |
| M185763176L | |
|---|---|
 |
|
| Inc. Angle | -41.09 |
| Emission Angle | 0.35 |
| Time | 12.8 |
| Resolution | 1.59 |
| M1332893153L | |
|---|---|
 |
|
| Inc. Angle | 53.19 |
| Emission Angle | -2.12 |
| Time | 9.53 |
| Resolution | 1.02 |
