Pits Atlas: Copernicus 13a
| Impact Melt pit: Copernicus | |
|---|---|
| Name | Copernicus 13a |
| Lat. | 10.1857 |
| Long. | 339.8727 |
| Desc. | Irregular pit in a double depression; northwesternmost of a pair of pits. NW bowl has no pit, SE bowl has pit, both are included in funnel measure. Rocky floor, no ramp in. Copernicus 13b is ~250m SE, and is aligned with the two depressions of 13a and an additional depression NW of 13b. There is no linear depression between 13a and 13b, and the entire area is very flat. Both are roughly in line with Copernicus 21, ~650m WNW. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Copernicus |
| Funnel Min. Diam. | 68 |
| Funnel Max. Diam. | 123 |
| Inner Min. Diam. | 6 |
| Inner Max. Diam. | 14 |
| Azimuth | 120 |
| Depth | 11.0 |
| Depth 1 | 8.8 |
| Depth 2 | 11.8 |
| Depth 3 | 13.8 |
| Best Stereo Left | M153014813R |
| Best Stereo Right | M153014813R |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | |
| Entrance Ramp | N |
| Overhang | ? |
| Nearby Pits? | Y |
| Nearby Fractures? | N |
| Nearby Depressions? | N |
| In Dome | N |
| Beside Dome | N |
| In Depression | N? |
| Colinear Pits | Y |
| Colinear Depressions | Y |
| Colinear Fractures | N |

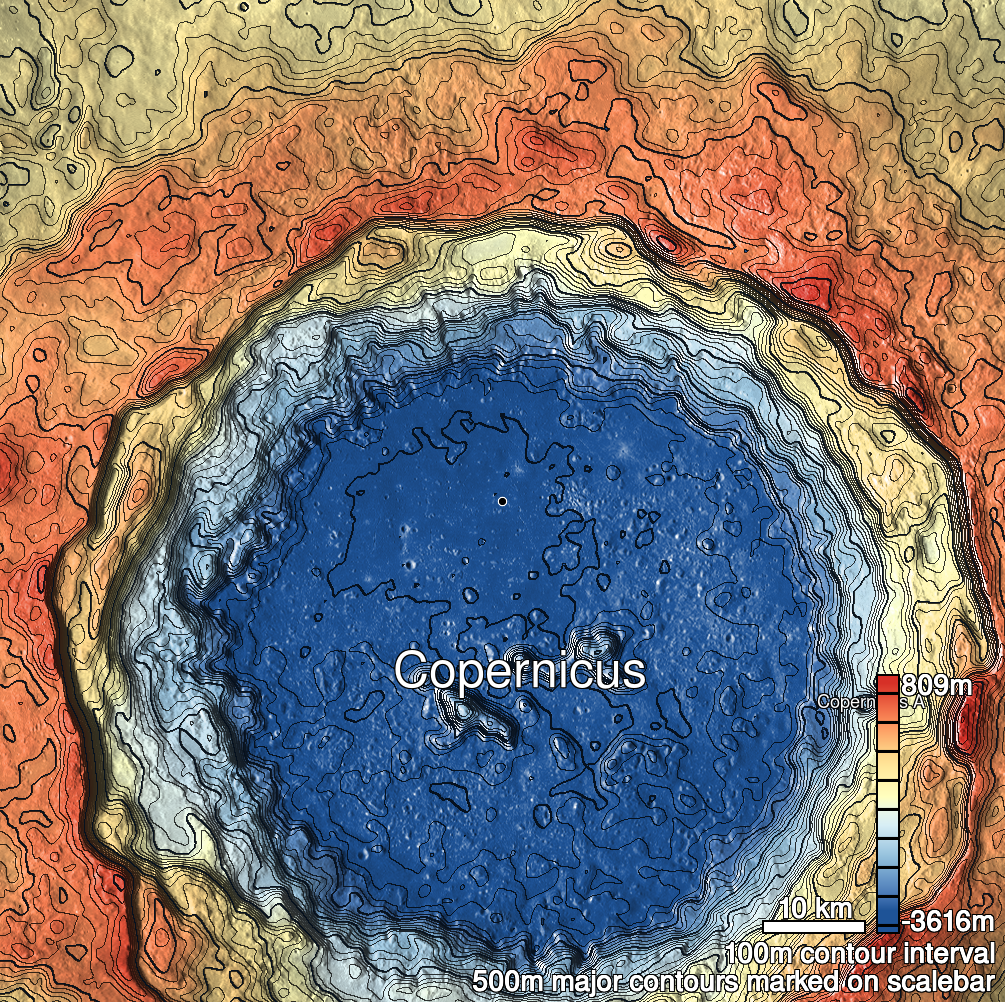

| Copernicus 13a Shaded Relief | |
|---|---|
 |
| M155369774R | |
|---|---|
 |
|
| Line | 38160 |
| Sample | 1628 |
| Inc. Angle | -9.71 |
| Emission Angle | -0.63 |
| Time | 12.29 |
| Resolution | 0.43 |
| M1103695396R | |
|---|---|
 |
|
| Inc. Angle | 17.44 |
| Emission Angle | 0.91 |
| Time | 11.12 |
| Resolution | 1.21 |
| M1177898186L | |
|---|---|
 |
|
| Inc. Angle | -16.11 |
| Emission Angle | 2.23 |
| Time | 12.9 |
| Resolution | 1.18 |
| Copernicus 13a Stereo |
|---|
 |
