Lunokhod 2 Revisited

Lunokhod 2 LROC
Lunokhod 2 rover parked facing southeast with the lid still open. Rover tracks extend north to the final parking place. The inset is a zoomed in view of the rover, the main rover body is labeled B, the open lid is labeled L and the instrument suite on the front of the rover is labeled I. LROC image M175070494 [NASA/GSFC/Arizona State University].

The Lunokhod 2 rover is still parked on the floor of the crater Le Monnier (25.830°N, 30.914°E). This NAC image was taken when the spacecraft was only 24 km above the surface, zipping along at about 1.6 km/sec (about 3600 mph). The spacecraft had to turn on its axis 27° to view the rover. The resolution is about two times higher than usual!

The Lunokhod 2 rover was carried to the surface on board the Luna 21 spacecraft. Lunokhod is the English translation of the Russian word “Луноход”, meaning Moon Walker. The ensemble was launched on 11 January 1973 and the landing occurred on 15 January in Le Monnier crater on the eastern margin of Mare Serenitatis. The coordinates of the landing site are 26.005°N, 30.406°E (on the basis of nine observations) at an elevation of -2769 m (1734630.9 m radius).

Le Monnier crater

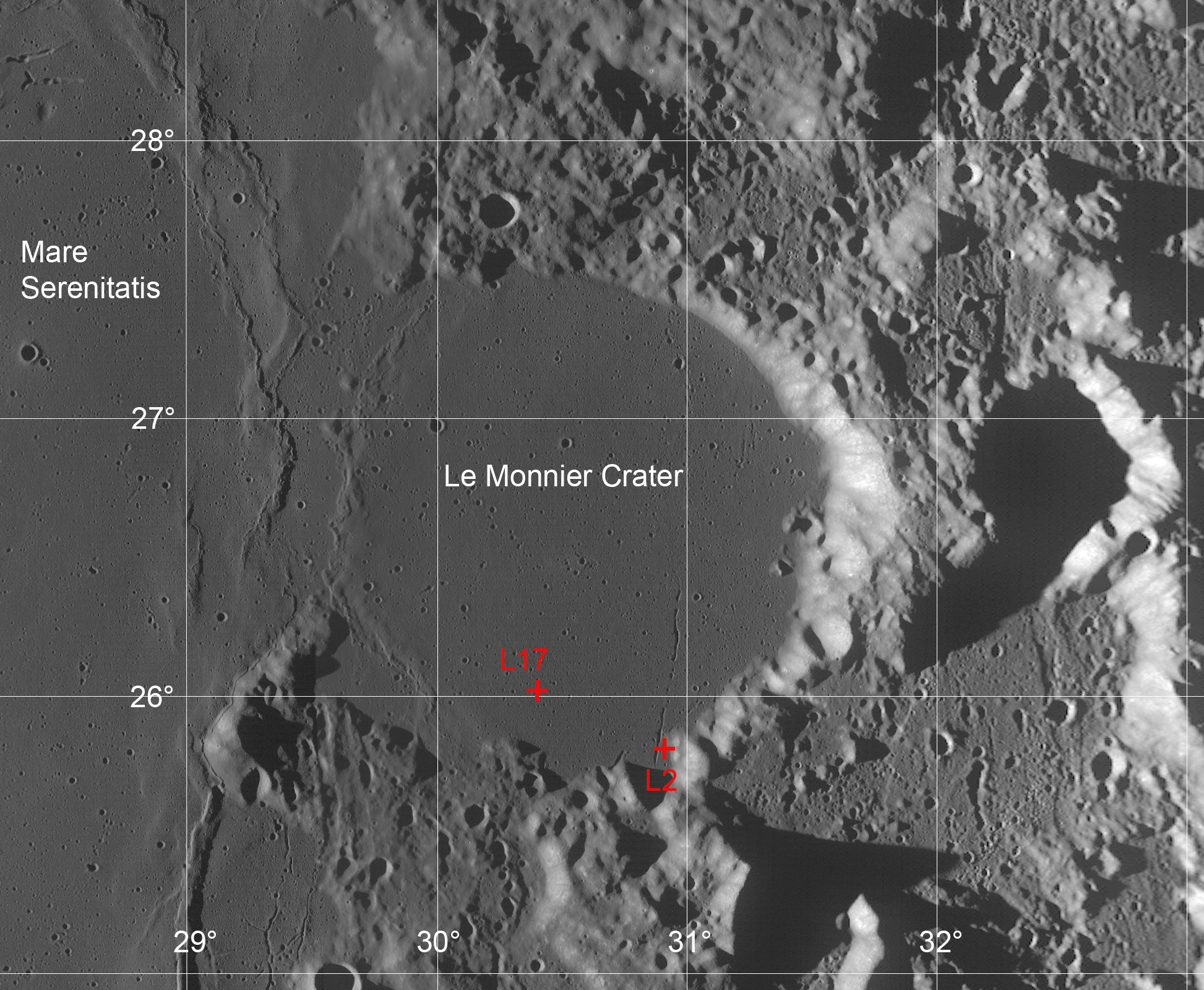

Le Monnier crater lies on the eastern wall of the Serenitatis basin. The lavas that compose Mare Serenitatis also flooded the floor of this 61 km diameter crater. The two red crosses indicate the locations of the Luna 17 lander (L17) and the Lunokhod 2 rover (L2) [NASA/GSFC/Arizona State University].

Lunokhod 2 is about 170 cm (5’ 7”) long x 160 cm (5’ 3”) wide x 135 cm (4’ 5”) tall, and it is almost circular when viewed from above. The vehicle had eight wheels and could travel at either 1 km/hr or 2 km/hr (0.6 and 1.2 mph). The lid on the top of the rover served to provide solar power and to keep the vehicle warm at night. When the lid was opened, the solar cells collected energy to operate the rover. At night, the lid was closed and a fluid heated by the decay of Polonium-210 kept the rover warm. The rover was controlled remotely by a team of Soviet controllers on Earth.

Model of the Lunokhod 2
Image of Lunokhod 3 (nearly identical to Lunokhod 2) shown with lid partially open, note the mesh wheel design.

During its 37 km traverse, Lunokhod 2 headed south from the landing site and into the highlands from the southern rim of Le Monnier crater. Lunokhod 2 had difficulty on the slopes of the southern rim so it was turned northward and commanded to backtrack to the flat mare basalts that form the floor of Le Monnier. It then continued eastward across the crater floor eventually encountering a 250 wide north-northeast trending rille named Fossa Recta (Straight Rille).

Lunokhod 2 landing site
The Luna 21 lander with ramps deployed on both sides, to the northwest and to the southeast. Lunokhod 2 drove off the lander to the northwest and circled around to the east. Several turns were made as the rover photographed the lander. It then departed and headed south. LROC NAC M122007650L [NASA/GSFC/Arizona State University].

The rover had to work its way down the rille wall and across the floor before finally climbing out on the east side. Lunokhod 2 continued north before reaching its final position. The mission officially ended on 4 June 1973 due to a failure of the rover. Apparently on 9 May, the rover’s lid touched a crater wall and become covered with fine-grained lunar regolith. That regolith was dumped onto the radiators when the lid closed. Subsequently, when the lid opened, the rover overheated and failed.

Luna 21 as seen by Lunokhod 2
Luna 21 lander as seen from the Lunokhod 2 rover. This view as taken from south of the lander looking to the northwest. The tracks around the east side of the lander are quite apparent, note the small berms of regolith that were pushed up as the rover turned. Lunation 1, Session 4, Panorama 12.


The scientific payload on the rover included three television cameras for navigation, four panoramic cameras, a cone penetrometer to test the lunar regolith, a solar X-ray experiment, a magnetometer, radiometer, and laser retroreflector.

Examine the regional geology that Lunokhod 2 was exploring (hint: sample 4493, line 15645; look to the south for some spectacular rover tracks).

First LROC Featured Image for the Lunokhod rovers.

And another LROC Featured Image for Lunokhod 2.

Published by Mark Robinson on 13 March 2012
